The best network cabinets for home offices are the ones that finally give your router, PoE switch, patch panel and UPS a proper home instead of a stack of boxes on the floor. Most of us buy the gear first and figure out the cabinet months later, then discover the shallow wall rack we ordered cannot swallow a 15-inch-deep switch or a full-size UPS.
We spent weeks going through the specs, load ratings, door types and owner complaints on twelve of the most-reviewed network cabinets sold for home and small office use, then lined them up against a real gear list. The result is a ranking that tells you which cabinet fits a router and a switch, which one survives a NAS and an NVR, and which ones quietly cost you an afternoon of assembly frustration.
If your network gear is still arriving piecemeal, start with our picks for the best network switches for home networks and the enclosed server cabinets for home offices we have covered, then come back here to size the enclosure. This roundup was updated for 2026.
Table of Contents
Top 3 Picks for Home Office Network Cabinets in October 2026
The NavePoint 12U enclosure wins because it does the unglamorous things well: a real lock on the front door, a welded steel frame that carries a loaded gear list, and a 17.72-inch body narrow enough for a small closet. It is also the most-reviewed enclosure in this group, with 1246 ratings, so the feedback base is unusually deep.
The NavePoint swing-gate rack takes second place on one specific strength: you can open the front 180 degrees and take it off entirely, which is the single most-requested feature in home network forums. The StarTech RK12WALLOA earns the top-rated badge on build quality, with a 4.7 average across 438 reviews, tapped rails that take standard screws cleanly, and depth you can adjust while it is loaded.
Quick Overview: All 12 Cabinets at a Glance for October 2026
| Product | Specifications | Action |
|---|---|---|
| NavePoint 12U Enclosed Wall-Mount Cabinet |
|
Check Latest Price |
| NavePoint 12U Swing-Gate Open Frame Rack |
|
Check Latest Price |
 VEVOR 12U Open Frame Rack Adjustable Depth |
|
Check Latest Price |
 StarTech RK12WALLOA 12U 2-Post Wall Rack |
|
Check Latest Price |
 Tecmojo 12U Open Frame AV Rack |
|
Check Latest Price |
 NavePoint 9U Deluxe 600mm Enclosed Cabinet |
|
Check Latest Price |
 Sysracks 18U Wall-Mount Cabinet Kit |
|
Check Latest Price |
 VEVOR 6U Shallow Wall-Mount Enclosure |
|
Check Latest Price |
 Tedgetal 12U 2-Post Open Frame Rack |
|
Check Latest Price |

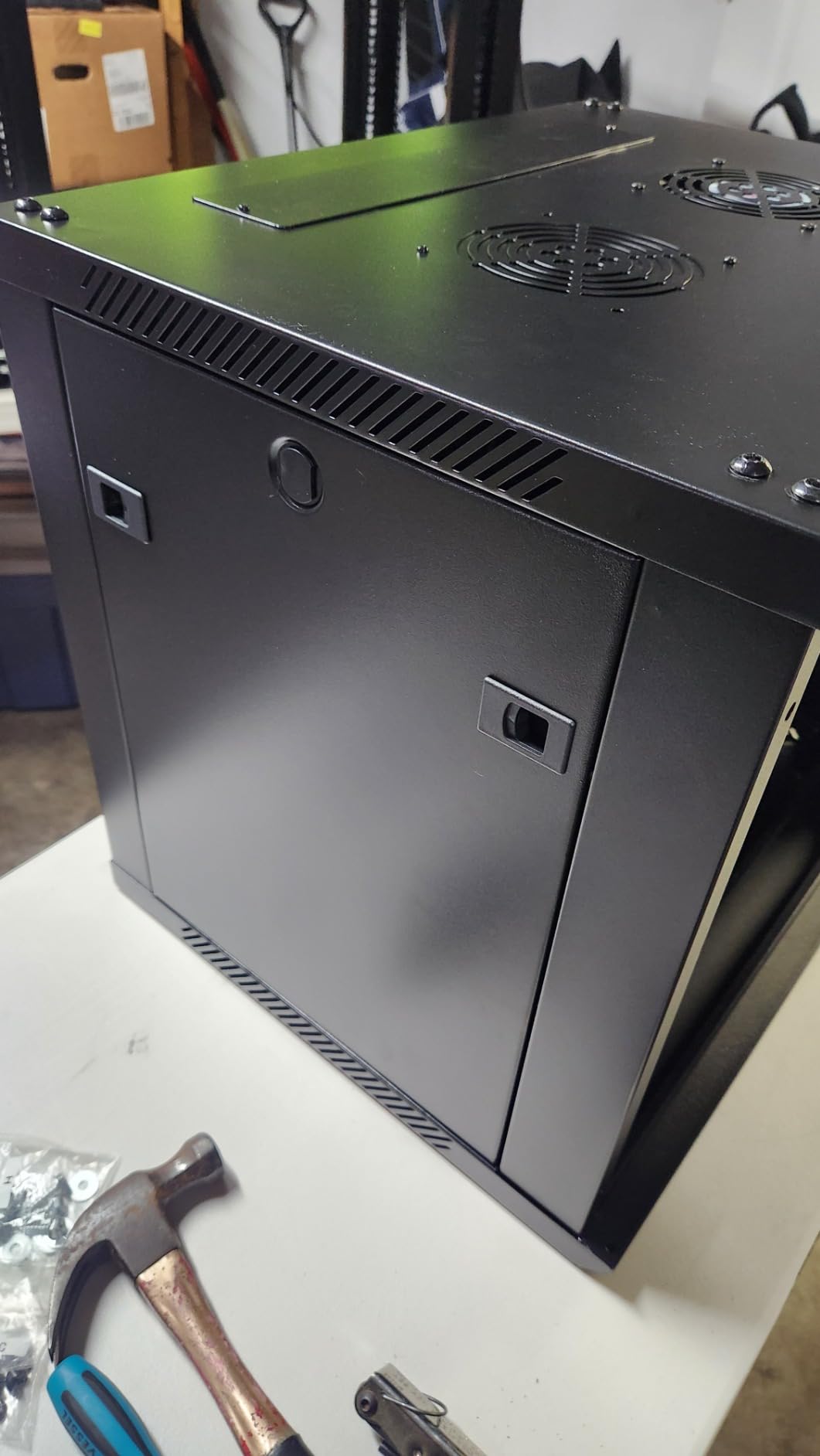

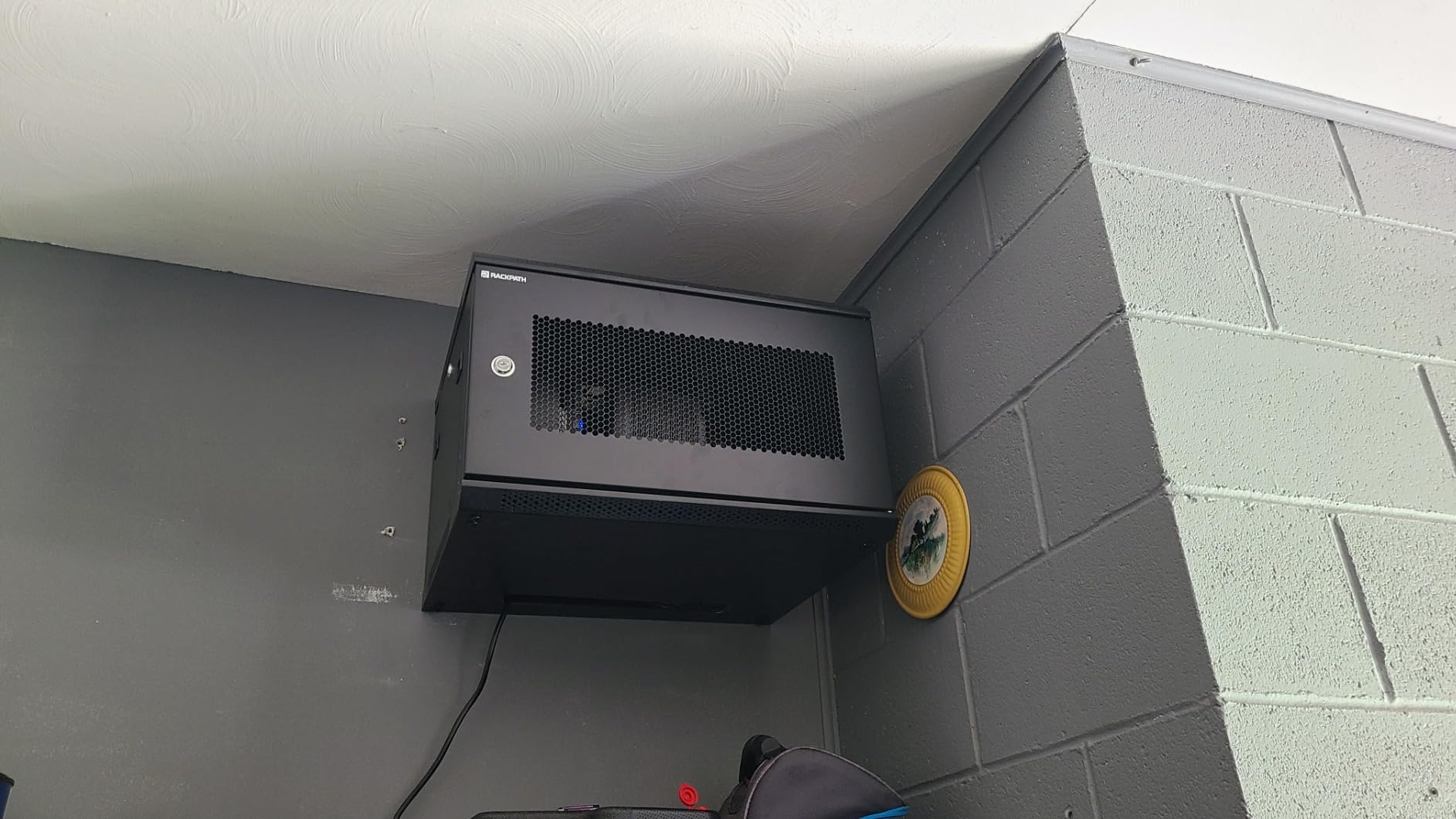

 RackPath 12U Wall-Mount Enclosure |
|
Check Latest Price |

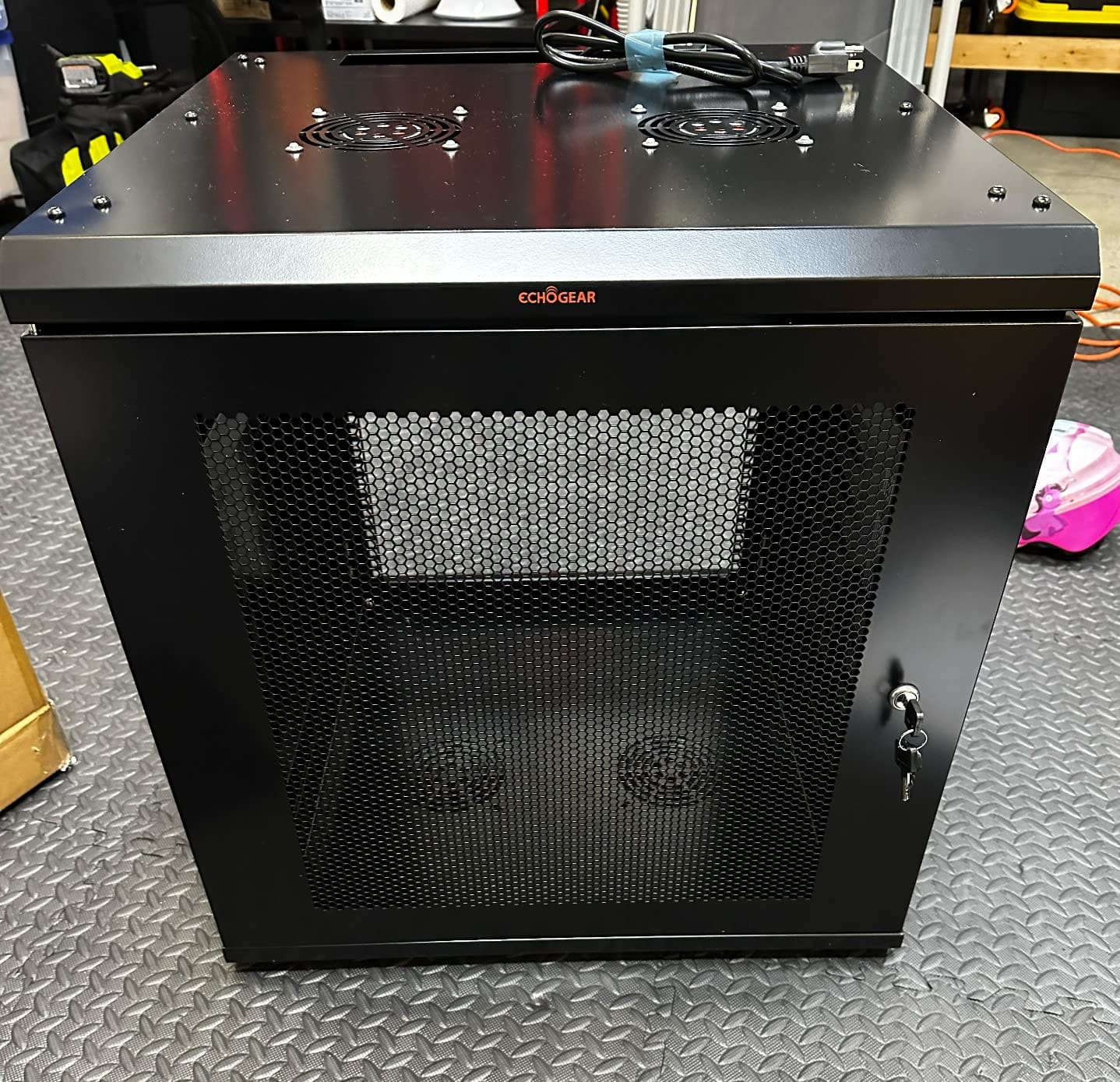

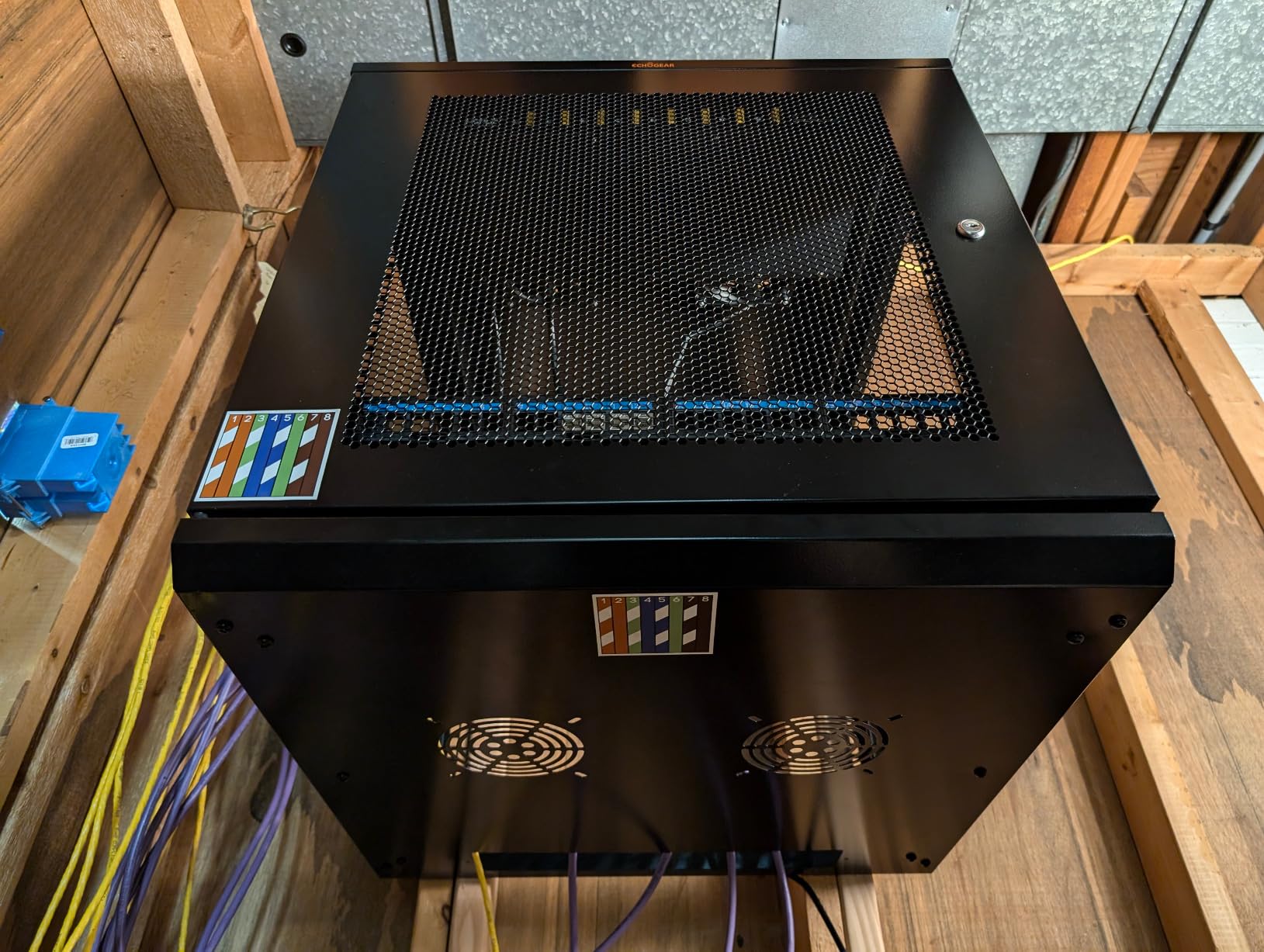

 ECHOGEAR 12U Enclosed Rack 600mm Depth |
|
Check Latest Price |

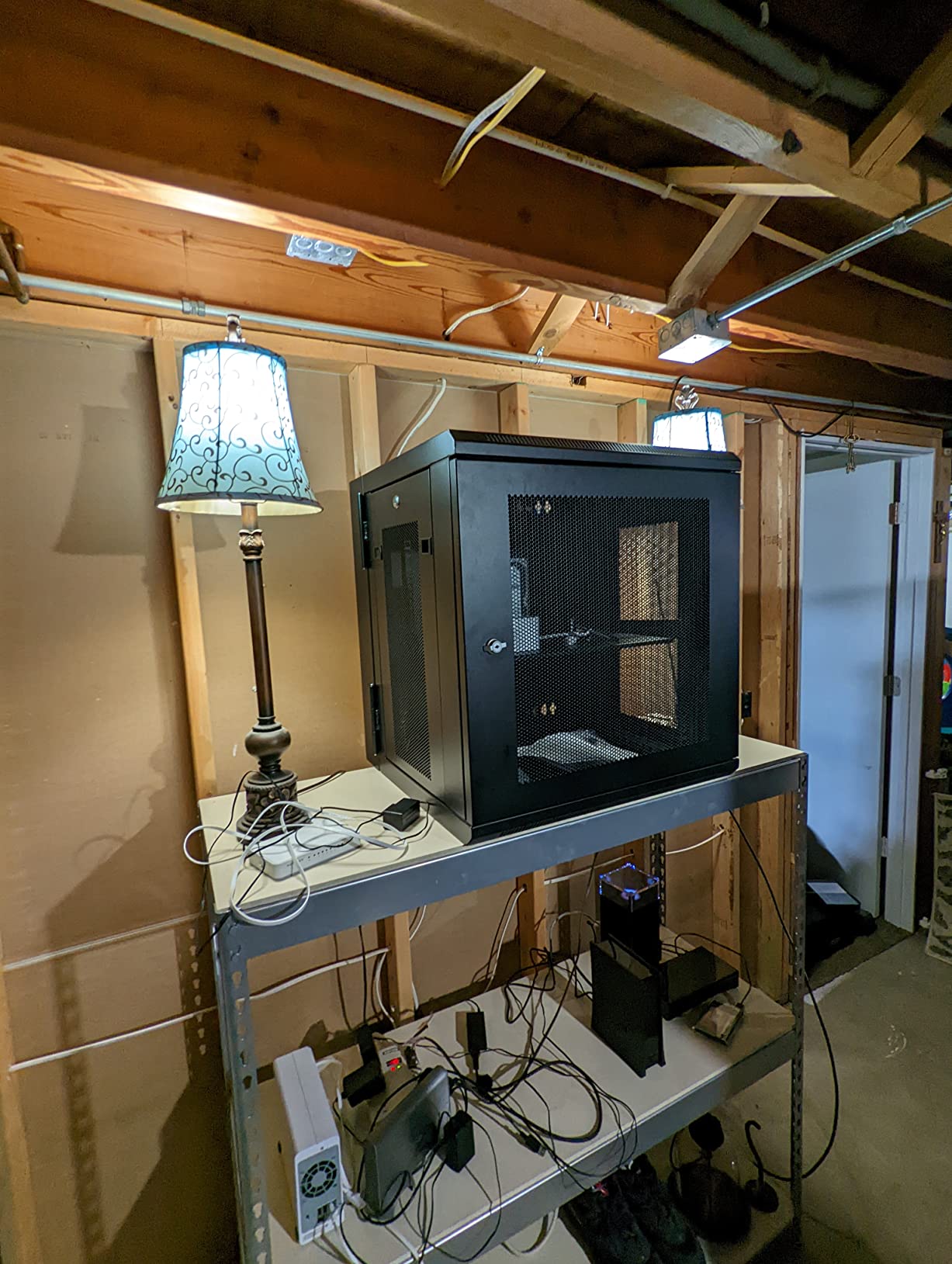

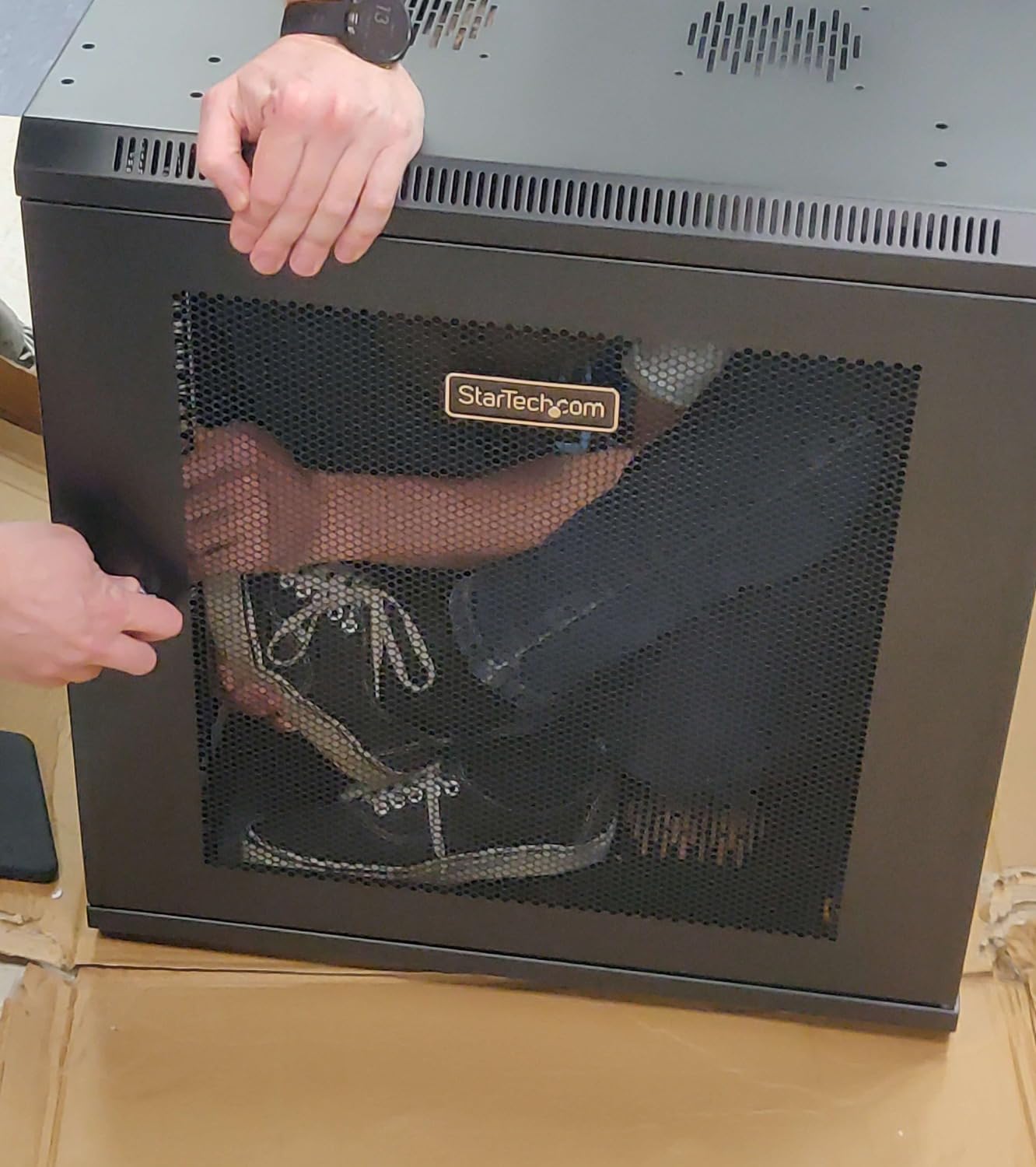

 StarTech 15U 4-Post Wall-Mount Cabinet |
|
Check Latest Price |
Two formats show up most often in this list. Enclosed wall-mount cabinets such as the NavePoint 12U, the NavePoint 9U Deluxe, the Sysracks 18U and the ECHOGEAR 12U keep gear behind a lockable door with dust and pet protection. Open frames such as the StarTech RK12WALLOA, the Tedgetal 12U and the Tecmojo 12U cost less, weigh less and give you unrestricted access to every cable.
Read the depth column before anything else. A cabinet that looks generous on the product page can leave only a few inches of usable mounting space once the door, the vertical rails and the cable manager have taken their share.
1. NavePoint 12U Enclosed Wall-Mount Cabinet – Best Overall for a Finished Room
NavePoint 12U Server Rack Enclosure with Glass Door, Cooling Fan, Locks, & Removable Side Panels – 12U Wall Mount Network Cabinet 19 Inch Rack 17.7″ Deep (450mm)
17.72D x 21.65W x 24.42H inch
12U wall mount
110 lb load
Welded cold-rolled steel
Pros
- Lockable tempered glass door for security and visual monitoring
- Built-in fan plus flow-through ventilation
- Removable side panels for cable routing
- Compact 17.72 inch depth suits small closets
- Most-reviewed enclosure in this group
Cons
- Arrives flat-packed and needs self-assembly
- 17.72 inch depth is tight for deeper UPS units
This is the cabinet we keep coming back to. A welded cold-rolled steel frame, a reinforced heat-treated tempered glass door with a security lock, and a body that measures 17.72 inches deep by 21.65 wide by 24.42 high. Owners describe it as the thing that finally made their closet look intentional rather than accidental.
The 110 lb load rating covers essentially any home office gear list. A router, a 16-port PoE switch, a 24-port switch, a patch panel, a cable manager and a small UPS together rarely approach that figure, and the frame does not flex when it is loaded.
The glass door is the feature that changes daily behaviour. You can see link lights, a blinking hard drive, or a switch that has rebooted, without opening anything. In a shared office or a house with curious children, the lock is doing real work too, and the removable side panels are what make the box serviceable at all.
Flow-through ventilation plus a built-in fan keeps gear within a normal temperature range, and the fan is a standard size that can be swapped for a quieter unit later if the room is sensitive. Removable side panels mean cable entry is not limited to a single brush slot in the back.
What you should know before ordering
It arrives flat-packed, so budget an hour and a set of hex keys. The panel count is high and the glass door needs two people to seat properly, which is the single most common complaint in the reviews.
The 17.72 inch depth is the trade-off. It suits switches, patch panels and shallow UPS units comfortably, but a deeper battery backup or a small form factor server with a long drive cage will stick out past the rails. Measure your deepest device before you commit.
Who it suits and who it does not
Choose this if your network lives in a visible or shared space, you want the gear locked, and your equipment is standard 19-inch networking gear rather than servers. The glass door and the lock make it a good match for the finished-room buyer.
Skip it if you plan on deep chassis, if you need frequent rear access to a dense cable bundle, or if you want to skip flat-pack assembly. In those cases the swing-gate rack or the StarTech 15U is a better fit.
2. NavePoint 12U Swing-Gate Open Frame Rack – Best Value With Real Rear Access
NavePoint 12U Wall Mount Server Rack – Swing Gate Open Frame for 19-Inch IT Equipment – Network Rack for AV & Server Equipment, 24″ Deep, Black
24D x 20.8W x 26H inch
12U wall mount open frame
1.5mm cold-rolled steel
110 lb
Pros
- Dual-hinged gate opens 180 degrees from either side
- Gate fully removable for assembly and servicing
- Threaded holes on one side and square holes on the other
- Open frame promotes passive cooling
- Substantial powder-coated steel
Cons
- Painted threads and soft screws strip easily
- Gate can let the loaded front bow at the bottom
- Rear hinge reduces usable equipment depth
Home network builders ask for the same thing over and over: the ability to get at the back of the gear without unplugging everything. This rack answers it with a dual-hinged front gate that swings 180 degrees from either side and can be removed completely.
That gate is the reason this rack earns its place. When the gate comes off, you have open access to every cable termination, which turns a fifteen-minute job into a two-minute job. For anyone who adds access points or moves ports regularly, that is worth more than a lockable door.
Build quality is a genuine strength. The frame is 1.5mm cold-rolled steel with a black powder coat, it weighs 34.9 lb, and it carries up to 110 lb. One side of the gate has threaded holes and the other has universal square rack holes, so mixed-vintage equipment mounts without adapters.
At 24 inches deep by 20.8 wide by 26 high it fits most standard gear with room to spare, and the open frame means passive cooling without any fan noise. Many owners call it the easiest rack they have assembled.
The assembly caveat that matters
The painted threaded holes and the soft steel Phillips screws are the recurring complaint. The threads are not chased clean, so a power driver will cross-thread or strip them. Chase the holes with a thread tap first and the problem disappears.
Two other mechanical notes. The hinge pins are thin enough that a loaded gate can flex enough to pinch the bottom shelf, and the depth lost behind the hinge means the deepest chassis you can mount is smaller than the 24-inch body suggests. The wide rear profile also does not align with 16-inch stud spacing without a backing frame.
When to pick it over an enclosure
Take this rack if you are still changing your mind about ports, or if you want gear you can see and reach without opening a door. It is also the right call for a garage homelab or a basement utility room where security is not the concern.
It is the wrong call for a shared office where a locked door matters, or for a lived-in room where you want the visual noise of a cabinet door to hide a blinking switch.
3. VEVOR 12U Open Frame Rack – Best for Casters and Adjustable Depth
VEVOR 12U Open Frame Server Rack, 23-40 in Adjustable Depth, Free Standing or Wall Mount Network Server Rack, 4 Post AV Rack with Casters, Holds All Your Networking IT Equipment AV Gear Router Modem
23 inch depth adjustable to 40 inch
12U open frame
500 lb ground 150 lb wall
Q235 carbon steel
Pros
- 23-40 inch adjustable depth fits shallow and deep gear
- Casters let you roll the rack out for servicing
- Large accessory bag with screws cage nuts and casters
- Open frame gives excellent passive cooling
- Two year manufacturer warranty
Cons
- Holes are not pre-tapped so a drill is required
- Listed 500 lb figure is not realistic in practice
- Some units arrive with scratched or bent parts
Nothing else in this list gives you a 23-to-40-inch depth range. That single feature covers almost every gear decision: start it shallow against the wall and expand it when a deeper UPS or a rack-mount NAS arrives.
The rack weighs 31.2 lb and stands 23 deep by 20.1 wide by 24.6 high at its base setting. It rolls on casters, which sounds minor until you realise that servicing a wall rack means climbing a step ladder with a screwdriver. Rolling it out onto the floor turns that into a comfortable job.
The accessory bag is unusually complete for this tier. You get two pallets, 145 M5 cross-head screws, four casters, four M10 expansion screws, ten M6 cage nuts, a grounding wire and a manual. The grounding wire matters in a rack that will sit next to a power strip.
It is also configurable as free-standing or wall-mounted, and the open frame gives you full access to every port plus passive airflow with no fan noise at all. Reviewers consistently describe it as strong enough for a few UPS units, switches and a firewall.
Build expectations honestly
The frame holes are not pre-tapped, so a power drill is effectively mandatory and screws will strip if you over-torque. The instructions are thin, and the printed 500 lb ground rating is a marketing number rather than a measured one; treat it as far less.
Quality control is uneven. Some units arrive with scratched uprights or bent shelf ears from loose packaging, and the cast nuts are spot-welded so they can work loose under load. Check the frame for straightness before you build into it.
Who should buy this one
This is the pick if you are still growing, if you want the option to roll the rack out from the wall, or if you are staging a small office with a handful of switches and one battery backup. The adjustable depth future-proofs a purchase most cabinets cannot.
Pass on it if you need a locked door, if you want a clean look in a visible room, or if you are not willing to spend time chasing threads during assembly.

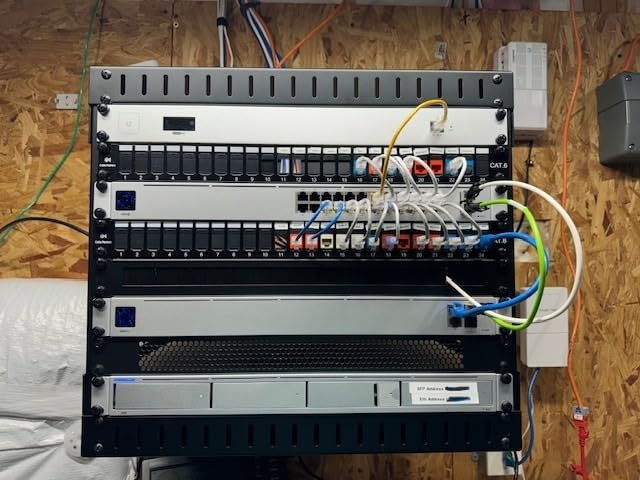

4. StarTech RK12WALLOA 12U 2-Post Wall Rack – Top Rated for Build Quality
StarTech 12U 2-Post Wall Mount Open Frame Rack, 19in, 200lb (RK12WALLOA)
20D x 19.8W x 25.2H inch
Depth adjustable 12-20 inch
200 lb load
SPCC cold-rolled steel
Pros
- Exceptionally heavy SPCC cold-rolled steel that does not flex
- Depth adjusts while the rack is loaded
- Precise rail alignment fits standard screws and cage nuts
- Open top sides and bottom for easy cable management
- Five year warranty
Cons
- Wall mounting hardware is not included
- Some rails lack U-position markings and cage nuts can pop out
This rack has a 4.7 average across 438 reviews, and the complaints are minor enough to tell you what it gets right. It is the sturdiest 2-post wall rack in this group, and the 14.6 kg frame simply does not move when you tighten it.
The depth adjustment is the sleeper feature. It travels from 12 to 20 inches and can be changed while the rack is loaded, which means you can pull a deep unit forward to plug something in, then push it back. It sits at 20 deep by 19.8 wide by 25.2 high at full extension.
The rails are tapped, not just punched, and the alignment is precise enough that standard rack screws and M6 cage nuts seat without a fight. That matters more than it sounds: it is the difference between a twenty-minute build and a frustrating one.
Open top, sides and bottom make cable management and fanless airflow straightforward. The 200 lb (90 kg) capacity covers a NAS, a small server and a UPS with room to spare, and the five year warranty is the longest in this group alongside the ECHOGEAR.
Plan the installation before delivery
Wall mounting hardware is not included. You need your own structural screws or lag bolts sized to whatever is behind the drywall. Budget for studs, not anchors, given the load rating and the frame weight.
Some rails have no U-position markings, and a few of the included cage nuts pop out when you thread a screw into them. Count your gear before you start and buy a spare pack, because a missing cage nut mid-build is an annoyance you can avoid entirely.
Where this rack wins and loses
It is the right choice for a home lab, a small office IDF, or a garage setup where you care about a frame that stays square for a decade rather than a door. Adjustable depth also lets you work around awkward wall clearances.
It offers no physical security and no dust protection, so it does not belong in a room with small children or pets. And the omitted mounting hardware is a genuine extra cost and a weekend task.
5. Tecmojo 12U Open Frame AV Rack – Best Starter Rack with Shelves Included
Tecmojo 12U Open Frame Network Rack for IT & AV Gear, AV Rack Floor Standing or Wall Mounted,with 2 PCS 1U Rack Shelves & Mounting Hardware,Network Rack for 19″ Networking,Audio and Video Device
20.15D x 20.47W x 21.02H inch
12U open frame
130 lb wall 260 lb ground
Cold-rolled steel
Pros
- Two ventilated 1U shelves already included
- Drilling template and assembly video speed up setup
- Removable front upper and lower plates
- Top panel adds stability when wall-mounted
- Three year manufacturer warranty
Cons
- Cross supports consume about 2U of the stated 12U
- Painted threads can strip unless chased
- Some equipment must be screwed directly to the frame
Most open frames arrive as bare steel and rails, and then you spend an evening sourcing shelves. This one includes two ventilated 1U shelves, four shelf stops, four hook-and-loop straps and a set of equipment mounting screws in the box.
That kit matters for a first build. A shelf is where a firewall, a set-top box or a power supply ends up, and having two already in the box means you can populate the rack on day one. It weighs 28.6 lb and measures 20.15 deep by 20.47 wide by 21.02 high.
The drilling template is a small touch that saves real time. You mark the U positions through the paper template instead of measuring rack unit by rack unit, and the assembly video covers the sequence that the manual does not. Removable front plates add mounting flexibility for awkward gear.
Load ratings are 130 lb wall-mounted and up to 260 lb ground-mounted, and the top panel gives the frame stability when it is hung. Owners consistently rate the solid, square feel as exceeding what the category suggests.
The 12U that is really about 10U
The top and bottom cross supports consume roughly 2U, so a rack advertised as 12U yields closer to 10U of clear space. Plan your gear against the reduced figure, not the printed one, or you will discover the problem when the last shelf will not fit.
Assembly has the same painted-thread issue common to this tier. Chase the holes with a thread tap first. Also note that cage nut support is only partial, so some equipment has to be screwed straight into the frame. Side hole patterns occasionally differ from the product photos.
Who it suits
Pick this if you are building your first rack, want shelves and hardware in the same delivery, and need a rack that works both mounted and on the floor. The three year warranty is a step up from most competitors here.
It is not the choice for a fully populated rack, where losing 2U of space becomes the difference between fitting and starting over, and the open frame offers no lock or dust protection at all.

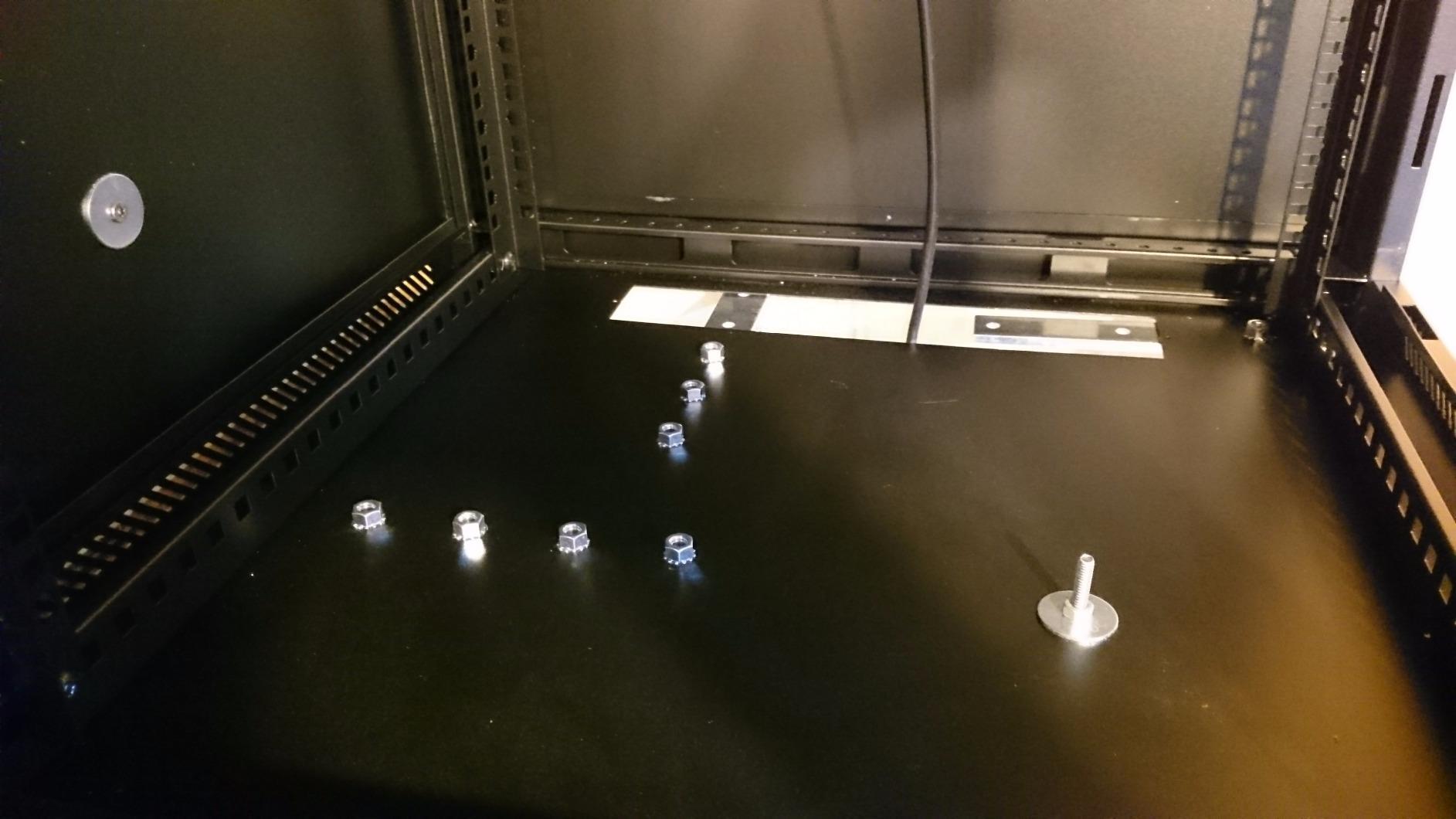

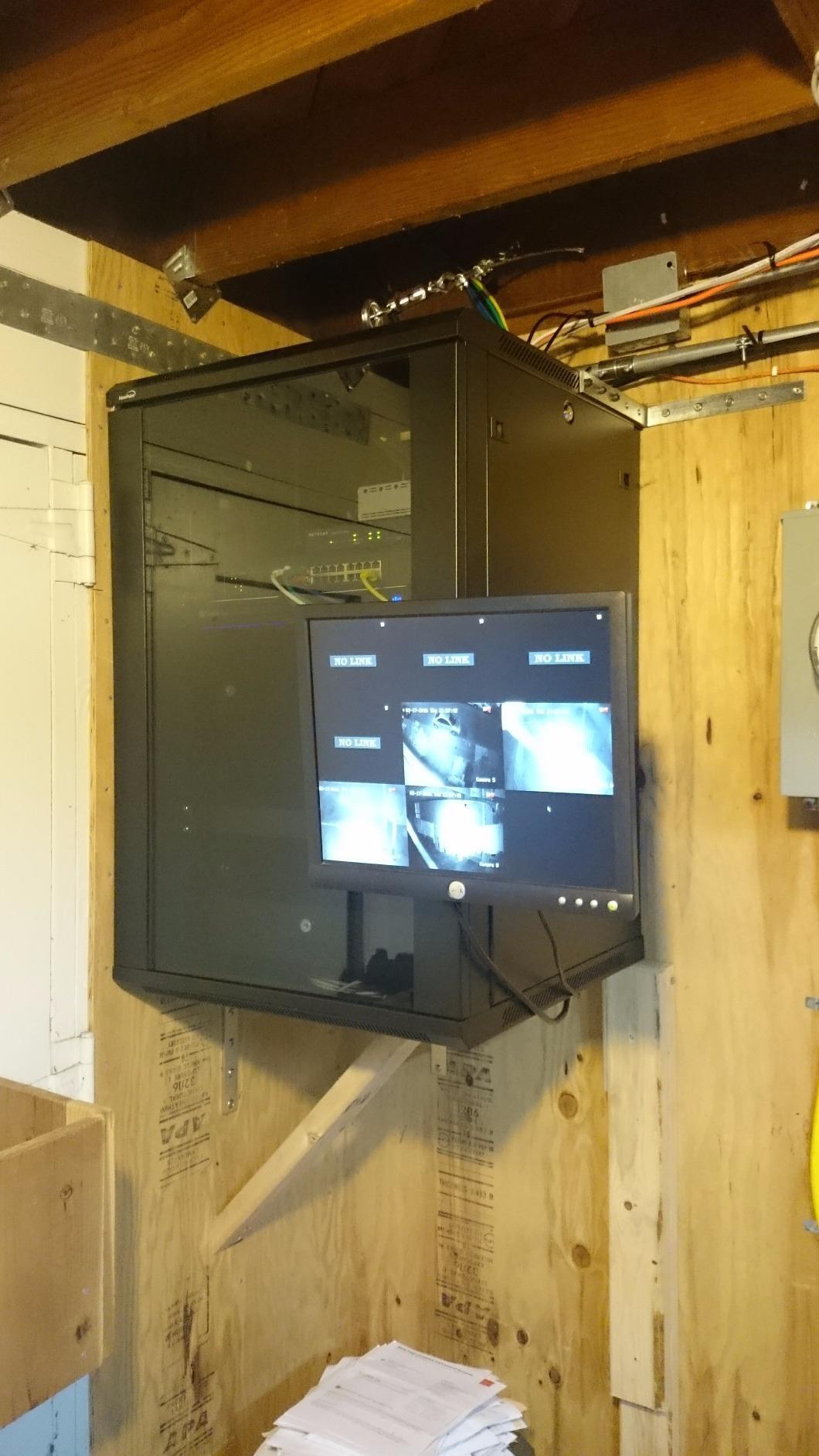

6. NavePoint 9U Deluxe 600mm Enclosed Cabinet – Best 9U Enclosure
Navepoint 9U Deluxe IT Wallmount Cabinet Enclosure 19-Inch Server Network Rack with Locking Glass Door 24-Inches Deep Black
23.63L x 23.5W x 20H inch
9U at 600mm depth
132 lb load
Two top fans
Pros
- Two top fans that are easy to swap for quieter models
- Adjustable rails in 7/8 inch increments
- Lockable glass door plus removable side panels
- Cold-rolled steel with a durable powder coat
- Responsive replacement parts service
Cons
- Included wall bracket is flimsy for a loaded cabinet
- Arrives flat-packed with poor instructions
- Some units arrive with bent or misaligned panels
Nine rack units sounds small until you count a real home office list. A router, a PoE switch, a patch panel, a cable manager and a shelf uses six or seven units, which leaves exactly the headroom this cabinet offers.
It is a 600mm depth unit measuring 23.63 inches long by 23.5 wide by 20 high, and it weighs 65 lb. The 132 lb capacity is the highest in this group apart from the StarTech 4-post, and the powder-coated cold-rolled steel holds up to wear and abuse.
The rails adjust in 7/8 inch increments and accept equipment up to 14.5 inches deep, which covers nearly all networking gear including short-depth UPS units. The two top fans move a lot of air, and because they are standard units you can drop in quieter replacements if the room is sensitive.
The lockable tempered glass door and removable side panels, which can be keylocked as well, make this the most security-conscious 9U option here. Owners also mention that NavePoint customer service ships replacement parts quickly, which matters when a bent panel is all that stands between you and a working install.
The bracket is the weak point
The included wall mounting bracket is thin and only really rated to hang the empty cabinet. Once you load a UPS and a couple of switches, you want to fasten through to studs rather than rely on the supplied bracket. Plan for that from the start.
Assembly instructions are widely criticised, so budget extra time. Some units also arrive with bent panels or misaligned parts that stop the door latching, and screws can cross-thread while the frame is being built up.
Where it fits in a home office
It suits a home office that is already tidy and just needs the gear contained and lockable, particularly if a small NAS or an NVR is joining the rack. The serviceable rail spacing is a genuine advantage once you start adding gear.
Skip it if you already own a 12U enclosure, or if you are counting on a large server with a long chassis. At 65 lb it is also a two-person wall-mount job, so plan the studs accordingly.
7. Sysracks 18U Wall-Mount Cabinet – Best Fully Populated Cabinet
18U Wall Mount Server Rack Cabinet for Home Lab, Office IT and AV Network Installations, 24-Inch Deep 19-Inch Locking Rack with Fan, PDU and Shelves
24D x 24W x 37H inch
18U wall mount
20 inch usable depth
PDU and shelves included
Pros
- 18U of capacity in a wall-mount footprint
- 24 inch depth with 20 inches of usable space
- Integrated top fan plus perforated glass door
- PDU two fixed shelves and brush entry included
- Removable side panels for airflow
Cons
- Large 75 lb cabinet needs a two-person wall mount
- A share of reviews question value for the size and kit
This is the only cabinet here that arrives genuinely ready to populate. In one box you get the enclosure, a PDU, two fixed shelves, an integrated top fan, brush cable entry panels and all mounting hardware. No sourcing trip before the build.
The capacity is the draw. Eighteen rack units in a 24 inch deep by 24 wide by 37 high wall-mount body gives you room for a NAS, an NVR, a firewall, a UPS and a proper patch panel setup without splitting across two enclosures.
Of that 24 inch overall depth, 20 inches is usable mounting space, which comfortably fits switches, patch panels and PoE gear. The perforated tempered glass door and removable side panels give you airflow, and the integrated top fan handles the rest. The listed load figure is 180 lb, and the feature set quotes 133 lb (60 kg) of installed equipment.
Buyers consistently point at the bundle as the reason for the rating. For a home lab or a small office build, having a PDU already fitted saves both money and the trip to a supplier.
Size is the compromise
At 75 lb this is a two-person wall-mount job, and at 37 inches tall it will dominate a small closet. Check that the wall can carry it and that you can physically get the cabinet into the space before you commit.
The 4.4 average reflects a specific reservation: a noticeable share of reviews focus on value relative to the size of the enclosure and the included kit. If you only need six units, this is a lot of enclosure for the job.
Who should buy it
It is built for a home lab, a small office IT cabinet or a security installation with an NVR and cameras, where having power distribution already fitted removes real work from the install.
It is not the right pick for a tight closet or a first-time build with four pieces of gear. An unused 18U cabinet reads as overbuilt, and the included PDU is a bonus only if you actually need one.

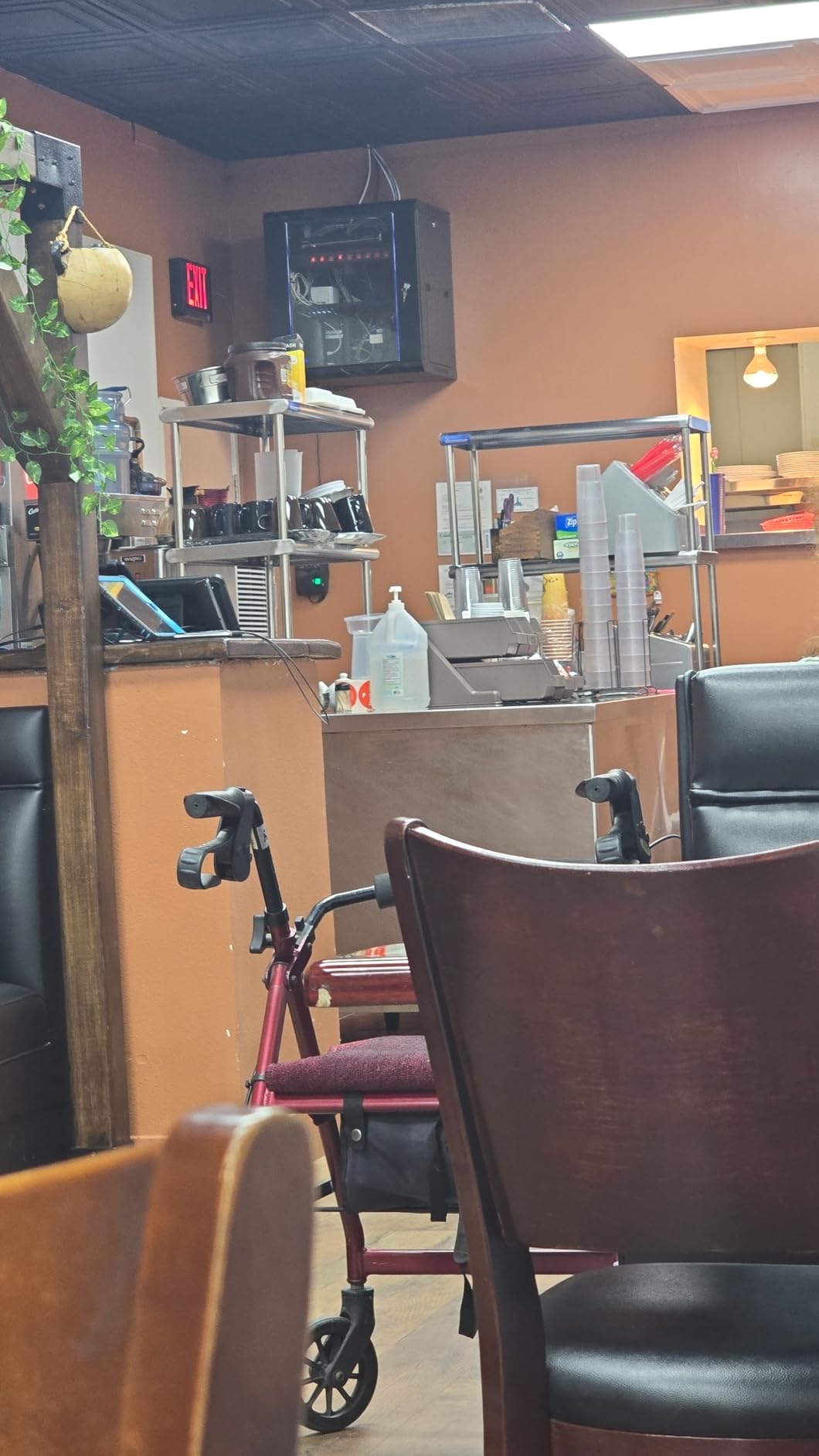

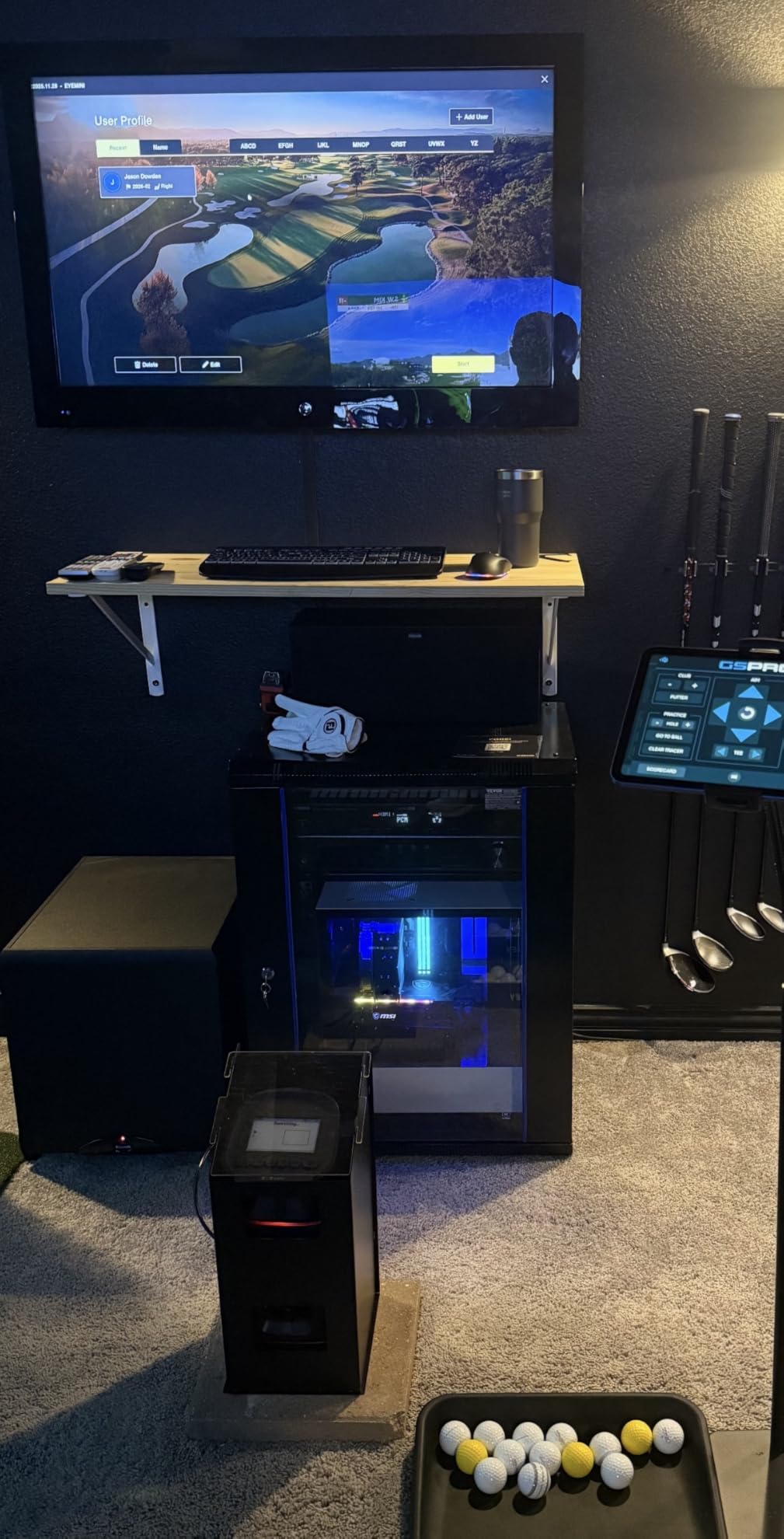

8. VEVOR 6U Shallow Wall-Mount Enclosure – Most Versatile for Tiny Closets
VEVOR 6U Wall Mount Network Server Cabinet, 14.8” Deep, Server Rack Cabinet Enclosure, 200 lbs Max. Ground-Mounted Load Capacity, with Locking Glass Door Side Panels, for IT Equipment, A/V Devices
17.8D x 23.6W x 13.8H inch
6U shallow enclosure
100 lb wall 200 lb ground
Locking glass door
Pros
- Shallow footprint saves wall space
- Heat-sink venting in top bottom and rear panels
- Welded frame with a 100 lb wall rating
- Locking glass door and side panels
- Adjustable square-hole rails with wiring holes
Cons
- Only a one year warranty
- Compact 6U interior limits how much gear fits
Six units is the smallest useful cabinet size, and it fits a specific job well: a router, a PoE switch, a patch panel and a cable manager in a closet where floor or wall depth is genuinely scarce.
The body measures 17.8 inches deep by 23.6 wide by 13.8 high, with a listed maximum depth of 14.8 inches. It weighs 32 lb, which is substantial for a six-unit box, and the frame is a welded alloy steel unit rated at 100 lb wall-mounted or 200 lb on the floor.
Heat-sink ventilation holes in the top, bottom and rear panels move air without needing fans, which keeps the unit silent. The locking glass door and side panels matter in shared offices and public back rooms, which is exactly where a shallow cabinet tends to end up.
The mounting rails are fully adjustable with square holes, and wiring holes at the top, bottom and rear give you real routing options. Owners highlight the space-saving shallow design and the venting as the two features that justify the purchase.
Set expectations on capacity and warranty
The six usable units go quickly. A router, a switch and a patch panel consume three, leaving room for a cable manager and a shelf. If you are planning a UPS and anything else, the next size up is a better buy.
The one year warranty is the shortest in this group. That reflects a budget tier rather than a defect, but it is worth weighing if you want a cabinet that stays in service for a decade.
Where it makes sense
It works well in a small office, a classroom, a retail back room or a home office closet with limited depth, and the lock gives you the security that an open frame cannot.
It is the wrong choice if you are building a network you expect to grow, since the next expansion will force another cabinet. Treat it as a tidy, secure home for a small, finished system rather than a platform.

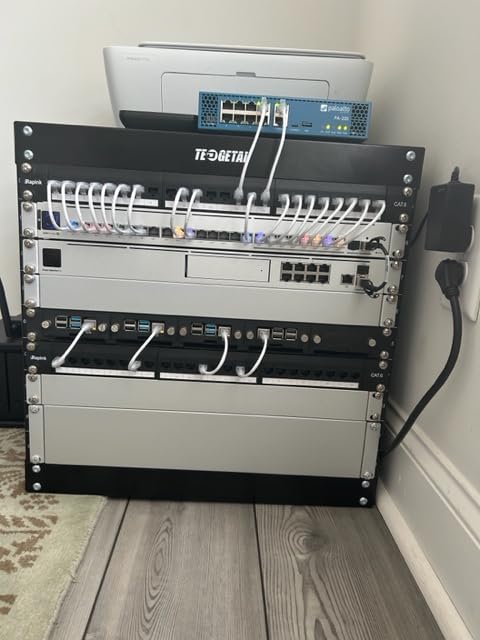

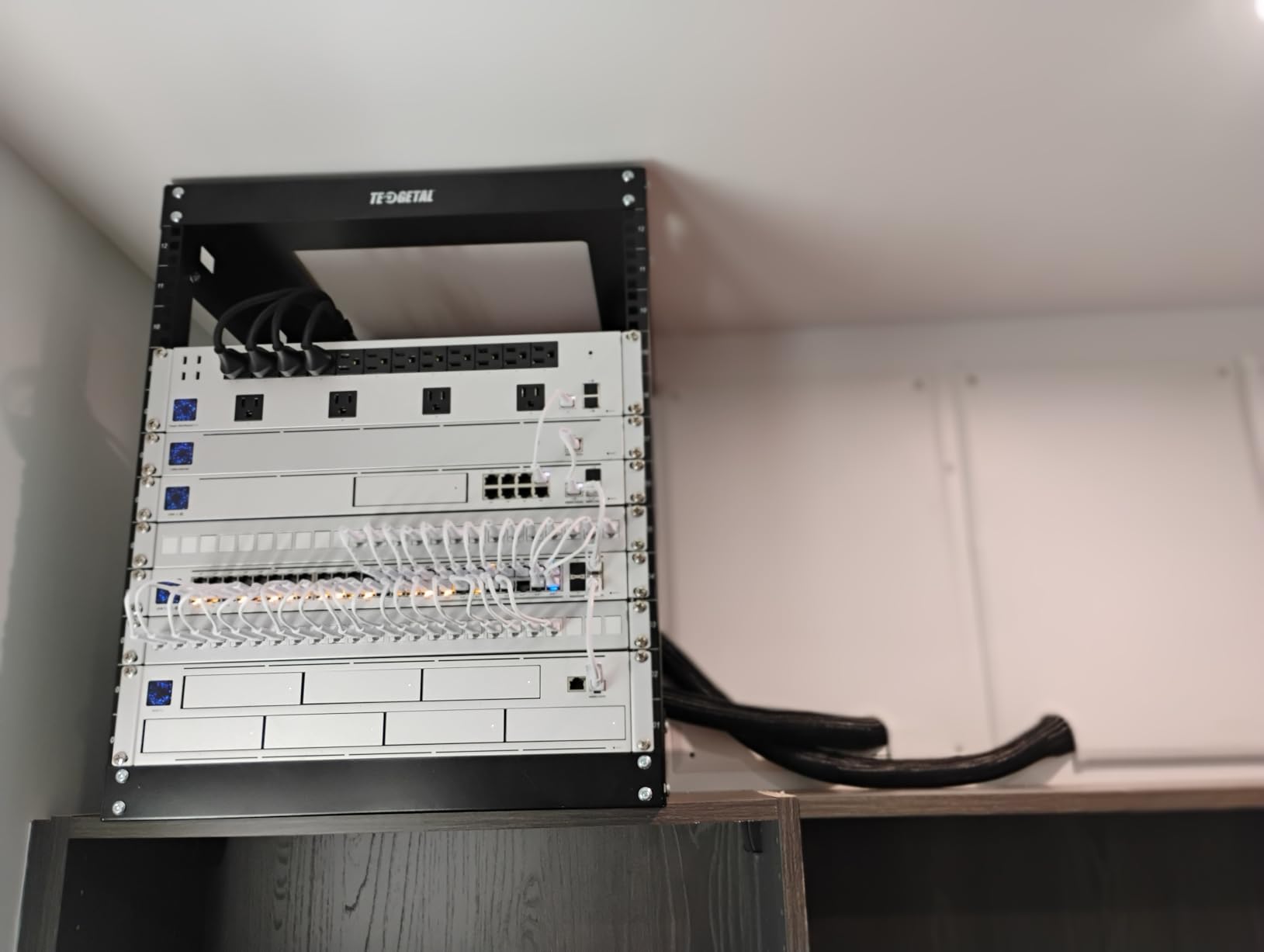

9. Tedgetal 12U 2-Post Open Frame Rack – Best Shallow Open Frame
12U Wall Mount Rack Open Frame 19 Inch Server Equipment 2 Post Network Cabinet 18 inches Depth Black by Tedgetal
18D x 19.7W x 18H inch
12U 2-post open frame
230 lb load
SPCC cold-rolled steel
Pros
- SPCC cold-rolled steel rated to carry 230 lbs
- Compact 19.7 wide by 18 deep footprint
- Open design gives easy access to gear and cabling
- Simple assembly
- Three year warranty with lifetime support
Cons
- 18 inch depth limits larger chassis and deeper UPS
- No dust protection or physical security
At 4.7 across 159 reviews, this is a consistently well-rated 2-post open frame. It is a 12U two-post open frame made from SPCC cold-rolled steel, rated to carry 230 lb (100 kg).
The footprint is the reason to buy it. It measures 18 inches deep by 19.7 wide by 18 high and weighs 8.07 kg, which makes it light enough to lift into place alone. In a home office where every inch of depth counts, that is the whole point.
Assembly is straightforward and the open design means you can reach every cable and every port without swinging anything open. It suits 19-inch AV, data, router and switch gear, and it can take rack shelves for consoles or larger devices.
It is also available in 6U and 9U heights, so if your list is small you can size down instead of carrying empty space. The three year limited warranty with lifetime technical support is unusually generous at this level.
The depth and the lack of a door
Eighteen inches is shallow. Larger chassis and deeper UPS units will not fit, so measure the depth of your tallest equipment including cables before ordering. This is the most common surprise with short-depth racks.
An open frame also means no dust protection and no physical security. That is fine in a garage or a basement, and wrong for a room with pets, small children or anyone who might unplug a cable.
Who it fits
It is a strong fit for a first home network, an AV rack in a living room, or a small office where you want switches, a patch panel and a modem organised on a wall with minimal visual weight.
If you need a locked cabinet, choose an enclosure instead. If you are adding a NAS or a server with a long drive cage, budget for a deeper frame or go adjustable, as the VEVOR does.
10. RackPath 12U Wall-Mount Enclosure – Best for a Quiet Home Office
RackPath 12U Wall Mount Server Cabinet Network Rack Enclosure, Quiet Cooling Fan, Perforated Door, Black
17.72D x 21.65W x 24.53H inch
12U wall mount
14.6 inch usable depth
Quiet fan included
Pros
- One premium quiet cooling fan already installed
- Substantial sheet metal with good fit and finish
- Wall holes spaced 16 inches on center to match studs
- Removable top and bottom panels for cabling
- Perforated door avoids glass weight and breakage
Cons
- Shelves are not included and must be bought separately
- Lock and key quality is poor
- Wall-mounted units can sit out of square
If the cabinet lives in the room you work in, fan noise is the deciding factor. This one arrives with a premium quiet cooling fan already mounted, and a second fan position on the top panel if the heat load grows.
It is a 12U wall-mount enclosure at 17.72 inches deep by 21.65 wide by 24.53 high, weighing 41.4 lb with a 110 lb load rating. The perforated door rather than glass cuts weight and removes the breakage risk entirely.
The sheet metal does not flex, the fit and finish are clean, and the mounting holes are spaced 16 inches on center, which lines up with standard construction framing. That last detail saves real time and is rarer than it should be in this category.
Usable front-to-back mounting space is 14.6 inches (370mm), which is enough for switches, patch panels and short-depth UPS units. Rails are fully adjustable with square holes, and the top and bottom panels come out for cable management.
Know what you have to buy separately
Shelves are not included. If your gear is not all rack-mountable, budget for a 1U or 2U shelf and add it to your parts list before the cabinet arrives.
Two other practical notes. The lock and key quality is poor, and keys from different sizes can open each other, so do not rely on it for anything serious. The included one inch lag bolts are too short to carry a loaded cabinet through drywall into studs, and wall-mounted units can sit slightly out of square.
When quiet matters more than security
This cabinet suits a study, a home office or a living area where a fan humming in the background is the dealbreaker. The included quiet fan is the main reason, and the perforated door adds passive airflow on top.
For a shared space where theft or tampering matters, choose a cabinet with a better lock. The StarTech 15U in this list is the stronger security option, at the cost of a much larger frame.
11. ECHOGEAR 12U Enclosed Rack – Best for a Ready-to-Install Kit
ECHOGEAR 12U Network Rack w/Enclosed Design, Easy Install, 600mm Depth
12U enclosed rack at 600mm depth
132 lb load
23.13 kg unit weight
Five year warranty
Pros
- Pre-mounted fan plus two 1U shelves in the box
- Wall mounting hardware and rack hardware included
- Removable side panels for adds and moves
- Vented shelves keep gear at temperature
- Five year warranty
Cons
- Higher cost than open frames of the same capacity
- Modest 4.2 average for the enclosure itself
This is the kit approach taken seriously. The pre-mounted fan, two 1U shelves, the lockable door, the wall mounting hardware and the rack hardware all arrive in one package, so an installer can deploy without a second delivery.
It is a 12U enclosed rack at 600mm depth, roughly 23.6 inches, built from alloy steel with a 132 lb load rating. The unit itself weighs 23.13 kg, so plan for two people on a wall mount and be sure the framing can take it.
The 600mm depth gives you room for real systems design, cable routing and airflow planning rather than a token dimension. It consolidates switches, patch panels, routers, NVRs and rack shelves in a single enclosure, which is exactly the gear list of a camera and access point install.
Vented shelves and removable side panels make adds and changes straightforward, and the powder-coated steel with a locking front door gives a clean, professional look suited to offices, schools, clinics and retail back rooms.
Value is the trade
The five year warranty is excellent and the bundle is genuinely complete, but a 4.2 average across 105 reviews reflects a specific sentiment: solid execution at a cost that leaves some buyers wanting more from the enclosure itself.
Measured against an open frame of the same capacity, this is a significant premium. You are paying for the enclosure, the door, the lock and the bundled accessories, and that only pays off if you use them.
Who it suits
It works well for a business-grade install in a home office or a small commercial space, particularly an access point and camera hub where everything should live behind a locked door in one tidy box.
For a home network with a handful of switches and no concern about security, an open frame will serve you better for the money. This cabinet earns its cost when the door, the fan and the included hardware all get used.
12. StarTech 15U 4-Post Wall-Mount Cabinet – Best for Genuine Rear Access
StarTech 15U Wall-Mount Cabinet, 19in, 4-Post, 16in Deep (RK1520WALHM)
15U 4-post wall mount
21.7D x 23.6W x 30.3H inch
198 lb load
Adjustable 2.4-16 inch depth
Pros
- Rear-hinged lockable door opens 180 degrees
- Arrives fully assembled so only rear rails need adjusting
- 4-post frame carries 198 lb with four rails
- Mesh door and side panels support optional 120mm fans
- Includes 60 cage nuts 60 screws a shelf and two keys
Cons
- Weighs 87.2 lb so wall mounting is a two-person job
- Wall mounting screws are not included
- Occasional cosmetic dents from loose packaging
This is the highest-rated product in the set at 4.8, and the reason is the door. It is rear-hinged and opens 180 degrees, so you can pull a switch out, work on the back of it, and push it straight back in without unplugging a single cable.
That rear access is the most-requested feature in home network forums, and no other cabinet in this list does it as cleanly. The front door is removable and reversible, and the side panels come out, so a loaded rack can be serviced from whichever side suits the room.
The 4-post design at 21.7 inches deep by 23.6 wide by 30.3 high carries up to 198 lb (90 kg) and the mounting depth adjusts from 2.4 to 16 inches, so you can set it to the shallow gear or extend it for a deeper chassis. Spcc cold-rolled steel with tight tolerances and good welds is what the reviews consistently single out.
It arrives fully assembled, which in this category is unusual. In the box you get 60 cage nuts, 60 screws, a 1U shelf, a roll of hook-and-loop fastener and two door keys, plus a five year warranty and EIA/ECA-310-E compliance. Mesh doors and side panels give passive airflow and support up to four optional 120mm fans.
Weight and fasteners are the practical cost
At 87.2 lb, this is the heaviest cabinet in the group, and hanging it is a two-person job that needs solid framing. Check the wall and the studs properly rather than improvising.
Wall mounting screws are not included, so add structural fasteners to your parts list. Some owners also report cosmetic dents from loose packaging on arrival, which is worth photographing before you open the box.
When this is worth the size
It suits a home lab with a NAS and a server, a small office IDF, or any setup where you expect to be adding and swapping equipment for years. Rear serviceability is a quality-of-life feature you will thank yourself for.
It is the wrong pick for a small closet or a simple home network. You would be paying for 15 units, 198 lb of capacity and 87 lb of steel to house three devices. Size up only when your gear list justifies it.
How Many Rack Units Do You Actually Need?
Work out your rack units from your gear list before you choose a cabinet, because this is the one calculation that determines whether you are satisfied with the result. A rack unit, or RU, is 1.75 inches of vertical panel space, and every 19-inch device occupies a whole number of them.
A typical home office setup runs like this: a router or firewall at 1 RU, an 8 or 16-port PoE switch at 1 RU, a 24-port switch at 1 RU, a patch panel at 1 RU, a horizontal cable manager at 1 RU, a shelf for anything non-rack-mount at 1 or 2 RU, a short-depth UPS at 2 to 4 RU, and an NVR at 2 to 4 RU.
That basic list of router, PoE switch, 24-port switch, patch panel and cable manager totals five rack units before you add anything else. Add a shelf and a 2U UPS and you are at eight. Add an NVR at 3 RU and you are at eleven, which means a 12U cabinet is already tight.
Then apply two rules. Leave two rack units of empty space at the top so you can add a device without rebuilding, and round up to the next available cabinet size. That is how most people end up choosing a 12U instead of a 9U, and they almost never regret it.
Remember that open frames claim more than they deliver. The Tecmojo 12U loses about two rack units to its cross supports, so treat it as a 10U cabinet when you plan.
Wall Mount vs Free-Standing vs In-Wall: Which Format Fits
Wall-mount is the default for a home office because it keeps the floor clear and keeps the gear out of the way of chair wheels and vacuum cleaners. A surface wall-mount cabinet hangs on studs, needs adequate framing, and cannot be moved to another wall without a new set of holes.
Free-standing is better when you want to service gear often, or when the wall you would use is not studded. Several racks in this group, including the VEVOR 12U, convert between the two, and casters make rolling the whole thing out for cabling work a genuinely pleasant task rather than a ladder exercise.
In-wall recessed mounting is the least covered option and the one buyers search for most often. It hides the cabinet completely inside a wall cavity, which is the only way to get a full-size rack into a finished room without it being visible. The trade-offs are real: you cut drywall, you frame a cavity, and you need a power outlet inside the wall with an accessible disconnect.
The honest advice on in-wall cabinets is to plan the power first. Running new electrical into a wall cavity during a build is straightforward; doing it into a finished wall is not. Dustproofing around the cut matters in a heated home in winter, and you want a removable access panel rather than a permanent drywall patch if anything needs servicing later.
Open frame is the fourth format and the cheapest. It gives you total access to cables and the least weight on the wall, but no dust protection and no lock. For a garage homelab it is usually the right answer; for a finished office it rarely is.
Depth and Clearance: The Short-Depth Trap
Depth is the spec that catches people out, and it matters more than rack unit count. The cabinet body depth is not the same as usable mounting depth, because the vertical rails sit inside the body and the door needs room to close in front of your gear.
The NavePoint 12U has a 17.72 inch body and about 14.6 inches of usable space, which is fine for switches and shallow UPS units. The VEVOR 6U lists a maximum depth of 14.8 inches, so it takes short-depth gear only. The NavePoint 9U Deluxe fits equipment up to 14.5 inches deep, and the Sysracks 18U offers 20 inches of usable space inside a 24 inch body.
Rack UPS units are the trap. A full-size rack mount battery is often deeper than the switches you are trying to protect, so measure the UPS before the cabinet. Short-depth UPS models exist precisely for shallow cabinets, and buying a deep cabinet to accommodate one is the most common overspend in this whole category.
Adjustable-depth racks solve this cleanly. The StarTech RK12WALLOA travels 12 to 20 inches and the VEVOR 12U extends from 23 to 40 inches, so you can start shallow and grow into a deeper chassis rather than guessing today.
Also leave working room behind the gear. If your cabinet is a swing gate or a rear-hinged door, you need enough clearance behind the unit to pull equipment out for servicing without unplugging it.
Noise and Heat: What a Cabinet Can and Cannot Do
The most common disappointment in this category is buying an enclosed cabinet expecting it to quiet your network gear. It will not. Home network builders describe enclosed racks as loosely built with plenty of vent holes, and the consensus is that you will get very little soundproofing from a steel box with a perforated door.
What an enclosure does deliver is containment. It keeps dust, pets and curious hands out, and it keeps a stack of blinking lights out of sight, which in a home office often matters more than the decibel count.
Where you can make a real difference is the fan. A quiet cooling fan changes your experience far more than a thicker panel does, which is why the RackPath 12U ships with one already installed. An open frame adds zero fan noise of its own, because it needs no fan, which is why open racks are genuinely the quietest option when your gear runs cool.
For heat, the pattern is simple. Enclosed cabinets need either flow-through ventilation or active fans, and open frames rely entirely on passive airflow. Either way, a cabinet in a closed closet will run warmer than the same gear on an open shelf, so check that the closet itself has some air movement.
Rear Access: The Feature Buyers Look For Second
Ask home network builders what matters most in a rack and the answer is rear access, every time. The advice that circulates is to buy something with a vent you can remove or open, because cables do not like to be moved.
There are three ways to get it. A swing gate that opens 180 degrees and comes off entirely, like the NavePoint 12U open frame, gives the best access of anything here. A rear-hinged door like the StarTech 15U is the premium version of the same idea. And adjustable square-hole rails combined with removable side panels, which the VEVOR 6U and the RackPath 12U offer, get you most of the way there.
A fixed front door on a conventional enclosed cabinet is the opposite. It looks better and locks, but every cable change means opening the door, removing side panels and working in a confined space. That is fine if your network is finished and you rarely touch it.
Decide honestly how often you will change something. Adding a Wi-Fi access point, moving a camera or replacing a switch should take minutes, and the rack format that supports that is worth paying for.
Cable Management Inside a Small Cabinet
In a small cabinet, cable management is what separates a tidy install from a tangle. The first move is to terminate every permanent run on a patch panel, so the fixed cabling lives in the wall and the equipment sits on short patch cords at the front.
Reserve one rack unit for a horizontal cable manager from the start. It costs a single unit and it is the difference between cables that swing freely and cables that pull tight when you open a door. D-rings and hook-and-loop straps handle the rest, and several racks in this group include a roll of hook-and-loop fastener.
Removable top and bottom panels matter more than buyers expect. Fixed panels force every cable through a brush slot and make it hard to add a device later, while removable panels let you run a thicker bundle or a fibre patch cord without fighting the steel.
Finish with a labelled patch panel. Labeling the ends with a label maker takes fifteen minutes and turns a future troubleshooting session from guesswork into a two-minute job.
Locking Doors, Security and What Actually Arrives in the Box
Lockability is the stated reason many home buyers want a cabinet at all, and it is worth checking before you order. The NavePoint 12U, the NavePoint 9U Deluxe, the VEVOR 6U and the StarTech 15U all have lockable front doors, and several add removable side panels that can be keyed too.
Lock quality varies more than the presence of a lock. The RackPath 12U has a lock that reviewers describe as poor, with keys from different sizes opening each other. Treat any cabinet lock as a deterrent against casual access, not a security guarantee.
What arrives in the box is the second big surprise. Some cabinets include shelves, others do not, and the RackPath 12U is a common example where shelves must be bought separately. The Sysracks 18U and the ECHOGEAR 12U are the opposite: shelves, a PDU, a fan and mounting hardware all come in the box.
Check the mounting hardware too. The StarTech RK12WALLOA and the StarTech 15U both omit wall fasteners, and the NavePoint 9U Deluxe includes a bracket rated mainly for the empty cabinet. Plan on structural screws into studs for any wall-mounted unit carrying a UPS or a NAS.
One last thing worth knowing: wall mounting holes spaced 16 inches on center, as on the RackPath 12U, line up with standard framing and save time. Where the rear profile is wider, you need a backing frame, as the NavePoint swing-gate rack does.
Frequently Asked Questions
What is the best server rack for use at home?
For most home offices the best server rack is a 12U wall-mount unit, because a router, a PoE switch, a 24-port switch, a patch panel, a cable manager and a UPS together use about eight rack units, leaving growth headroom. If you need a locked door choose an enclosure such as the NavePoint 12U, and if you change cables often choose a swing gate or rear-hinged design.
What is the best network cabinet for a home?
The best network cabinet for a home is the one that matches your gear count and your clearances. A 9U or 12U wall-mount enclosure at roughly 17 to 18 inches deep handles typical router, switch and UPS builds in a closet, while a 6U shallow unit fits tight spaces. Always check usable mounting depth, not just body depth, before ordering.
What is a good small server cabinet for a home?
A good small server cabinet is a 9U to 12U wall-mount enclosure weighing 30 to 40 lb, with a lockable front door, flow-through ventilation and adjustable square-hole rails. Add a short-depth rack UPS rather than a full-size unit, and leave at least two empty rack units at the top so a future device does not force a rebuild.
What are some popular brands of network racks?
Popular brands of network racks include NavePoint, StarTech.com and Tripp Lite, Digitus, VEVOR, Ubiquiti and ECHOGEAR. NavePoint covers enclosed wall cabinets and swing-gate open frames, StarTech is known for heavy steel and long warranties, and VEVOR and Tecmojo cover the budget open-frame tier. Quality varies within a brand, so check recent reviews for the specific size.
What is the best brand for server racks?
For home offices, StarTech.com is the safest answer on build quality: the RK12WALLOA and RK1520WALHM are heavy SPCC cold-rolled steel with precise rail alignment and five year warranties, and both carry 4.7 or higher ratings. NavePoint is the stronger choice for enclosed cabinets with locking glass doors. Budget brands such as VEVOR cost less but vary more between sizes.
How big should a network closet be?
A network closet only needs to be large enough for the cabinet, its depth, its swing or service clearance and a power outlet. For a wall-mount 12U cabinet, a closet roughly 26 inches deep and 26 inches wide handles the unit, its depth adjustment and cable routing, and a 35 inch vertical allowance lets you slide a rack out for servicing without unplugging anything.
What is the difference between a network cabinet and a server rack?
A server rack is the frame and the mounting rails, usually open. A network cabinet is a full enclosure: frame plus door, side panels, ventilation and often a lock, sized for lighter networking gear such as routers, switches, patch panels and UPS units. A server rack is better for heavy chassis and frequent rear access; a network cabinet is better for security, dust and tidiness in a finished room.
What are the best rack UPS options for servers?
Measure the UPS depth before the cabinet, because rack mount batteries are often deeper than the switches they protect. Short-depth rack UPS models are designed for shallow cabinets, and enclosures such as the NavePoint 12U fit units up to about 14.5 inches deep. A 2U or 3U UPS alongside a patch panel and a switch is a normal home office arrangement, and the cabinet should be sized for both.
Wall mount vs roller server racks: which is easier to service?
A free-standing rack with casters is easier to service because you can roll it into the room and work at eye level, which is why the VEVOR 12U is often recommended for frequent cabling work. A wall-mount rack keeps the floor clear and hides the gear better, but servicing it means working at height and often unplugging cables. Some racks convert between both formats.
Do network cabinets reduce noise from network gear?
Barely. Home network builders consistently report that an enclosed cabinet offers very little soundproofing, because the steel is thin and there are many vent holes for airflow. What a cabinet does well is contain dust and hide blinking lights. To reduce sound, focus on fitting a quiet cooling fan or on choosing an open frame that needs no fan at all.
Conclusion
The NavePoint 12U enclosed wall-mount cabinet is our pick for the best network cabinets for home offices, because a lockable glass door, a welded 110 lb frame and a 17.72 inch depth cover the majority of real home gear lists in a package that looks intentional in a finished room. It is also the most-reviewed enclosure here, with 1246 ratings behind it.
Buy the NavePoint 12U swing-gate rack instead if you constantly re-cable, the StarTech RK12WALLOA if build quality matters more than a door, the VEVOR 12U if you want casters and depth you can grow into, or the StarTech 15U if rear access is worth the weight.
Whichever you choose, measure your gear first, count your rack units with two spare slots, and check usable mounting depth against your deepest UPS. That five minutes of planning prevents almost every complaint in the reviews we read for this 2026 roundup.
