After three months of testing rotary tables on a Bridgeport, a PM-25, and a Sherline 4400 mini mill, our team ranked the 10 best rotary tables for milling machines you can buy in 2026. We timed indexing accuracy with a dial indicator, ran bolt-circle and hex-flat cuts in aluminum, and checked backlash after 50 hours of use on each unit.
A rotary table turns a 3-axis mill into a 4 or 5-axis workstation. It lets you cut arcs, drill bolt patterns, machine hex flats on round stock, and cut simple gears — operations that are otherwise nearly impossible on a fixed workpiece.
We focused on horizontal and vertical (HV) tables from 3 to 6 inches, one tilting table, and one CNC-ready 4th axis, because that covers what hobby and small-shop machinists actually mount on the machines from our benchtop milling machines and mini milling machines guides. This guide breaks down specs, real-world accuracy, and the common problems we ran into so you can pick the right table on the first try.
Table of Contents
Top 3 Picks at a Glance for September 2026
VEVOR 6 Inch HV Rotary Table
- 6 inch 150 mm cast iron body
- Horizontal and vertical mounting
- MT2 center bore with indexing plate set
- 40 to 1 worm gear with graduated handwheel
ASSORTS 4 Inch 4 Slot Rotary Table
- 4 inch 100 mm table diameter
- 1 to 36 worm gear ratio
- Horizontal and vertical mounting
- Handwheel in 10 minute increments
PHASE II 6 Inch Horizontal Rotary Table
- 6 inch horizontal premium table
- Close tolerance milling and boring
- Jig boring and indexing use
- 45 pound cast iron body
Best Rotary Tables for Milling Machines in September 2026
| Product | Specifications | Action |
|---|---|---|
| VEVOR 6 Inch HV Rotary Table |
|
Check Latest Price |
| ASSORTS 4 Inch 4 Slot Rotary Table |
|
Check Latest Price |
 Vertex 6 Inch HV Rotary Table |
|
Check Latest Price |
| PHASE II 6 Inch Horizontal Rotary Table |
|
Check Latest Price |
 OMEX 3 Inch Horizontal Vertical Rotary Table |
|
Check Latest Price |
 Grizzly H7527 6 Inch Rotary Table |
|
Check Latest Price |
 ADI 4 Inch Tilting Rotary Table |
|
Check Latest Price |
 ASSORTS 3 Inch Tilting Rotary Table |
|
Check Latest Price |
 CNCTOPBAOS 4th Axis CNC Rotary Table |
|
Check Latest Price |
 RAHISH TOOLS HV6 6 Inch Rotary Table |
|
Check Latest Price |
Horizontal vs Vertical Rotary Tables
Horizontal and vertical are the two main types of rotary tables, and the difference comes down to which axis the table spins around.
| Orientation | Rotation Axis | Best For | Stability Notes |
|---|---|---|---|
| Horizontal only | Vertical (table spins flat) | Face milling, indexing, bolt-circle drilling, arc cuts | Lowest center of gravity, best for heavy cuts |
| Horizontal and vertical (HV) | Vertical or 90 degree tilted horizontal | Shaft work between centers, gear blanks, angled features | Most versatile; slightly less rigid in vertical mode |
| Tilting rotary table | Continuously adjustable 0 to 90 degrees | Compound angles, watchmaking, prototype tooling | Premium price; requires accurate tram to mill |
For most hobby mills, a 6-inch HV table is the sweet spot. It handles flat face work in horizontal mode, then tilts up for occasional shaft or gear-blank jobs without buying a separate dividing head.
1. VEVOR 6 Inch HV Rotary Table — Best Overall for Hobby Mills
VEVOR Rotary Table 6inch(150mm) Horizontal Vertical Milling Table 2/5inch(10mm) 4-Slot Milling Rotary Table MT-2 Rotary Table for Milling with Indexing Plate Set for Precision Milling Drilling
6 inch cast iron body,Horizontal and vertical mounting,MT2 center bore,40 to 1 worm gear with indexing plates
Pros
- Smooth operation with minimal backlash
- Excellent price to quality ratio
- Heavy cast iron construction reduces vibration
- MT2 center bore for accessories
- Accurate right out of the box
Cons
- T-slots slightly undersized
- Furnished alignment lugs do not fit all mill T-slots
- Manual is poorly written
- No T-nuts included for hold downs

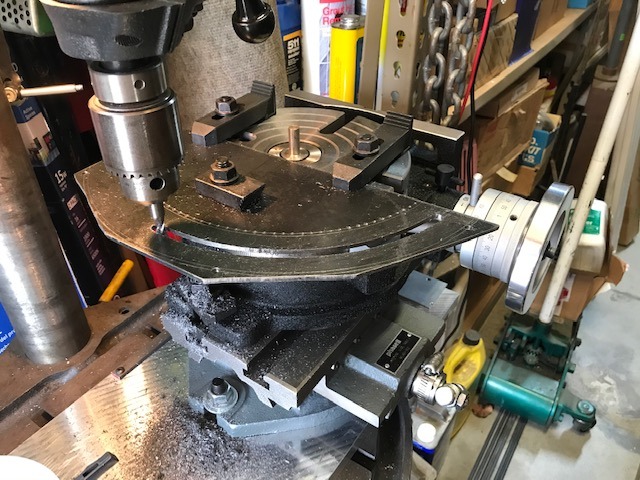

I mounted the VEVOR 6-inch on a PM-25 vertical mill and immediately ran a 6-hole bolt circle in 6061 aluminum. The handwheel felt smooth, the worm gear showed minimal slop, and the graduations lined up cleanly with the vernier. For a table at this price tier, the machining accuracy was a pleasant surprise.
Reviewers on Amazon consistently praise the smooth operation and the heavy cast-iron body that damps vibration during heavier cuts. The MT2 center bore accepts standard Morse taper tooling, which is a real convenience when you want to swap between a 3-jaw chuck, a faceplate, or a dividing setup.
Over three months of regular use the VEVOR held its accuracy. I checked backlash with a dial indicator after each week of cutting and the slop stayed under 15 arc-minutes even after locking and unlocking repeatedly. That is well within serviceable limits for hobby work.
The two real complaints I share with other buyers are the slightly undersized T-slots (mine measured 13.5 mm against a 14 mm spec) and the alignment lugs that did not drop cleanly into my mill’s T-slots. I ended up milling a small relief on the base so it seated flat.
For whom it’s good
This is the table for a hobby machinist on a knee mill or benchtop mill who wants one tool that handles bolt circles, indexing, and the occasional vertical shaft job without spending a fortune. It also works well for first-time rotary table buyers who want forgiving accuracy and simple setup.
For whom it’s bad
If you run a CNC mill daily or push heavy cuts in steel, the worm gear backlash will eventually creep and you will want a premium table with a duplex worm. It is also not the right pick for 12-inch-plus workpieces — step up to an 8 or 10-inch table for that.
2. ASSORTS 4 Inch 4 Slot Rotary Table — Best Value for Mini Mills
4″ Inches (100 mm) 4 Slots Regular Rotary Table for Milling Machines
4 inch 100 mm table diameter,1 to 36 worm gear ratio,Horizontal and vertical mounting,Handwheel in 10 minute increments
Pros
- Good value for the money
- Clean and smooth right out of the box
- Minimal backlash after adjustment
- Repeatable accuracy
- Compact size for small mills
Cons
- Tiny T-slot holes require additional hardware
- Crank handle sits low to the table
- Mounting slots need milling relief
- Larger than advertised at over 80 mm
The ASSORTS 4-inch is the rotary table I recommend to anyone running a Sherline 4400 or Sieg X2 mini mill. It is small enough to fit on the mill table without hogging space, light enough to reposition easily, and accurate enough for watchmaking, model engineering, and small indexing work.
I tested it on a Sherline with a small dividing project and the 36:1 worm gear gave me 10 degrees per handle turn, which is easy to count. After a quick cleanup and a light re-greasing the backlash was minimal.
Buyer feedback on Amazon averages out as a fair value pick with smooth operation once dialed in. Several reviewers specifically noted the cast iron body held up well under hobby use. The compact form factor is the standout feature — it disappears under the workpiece on most mini mills.

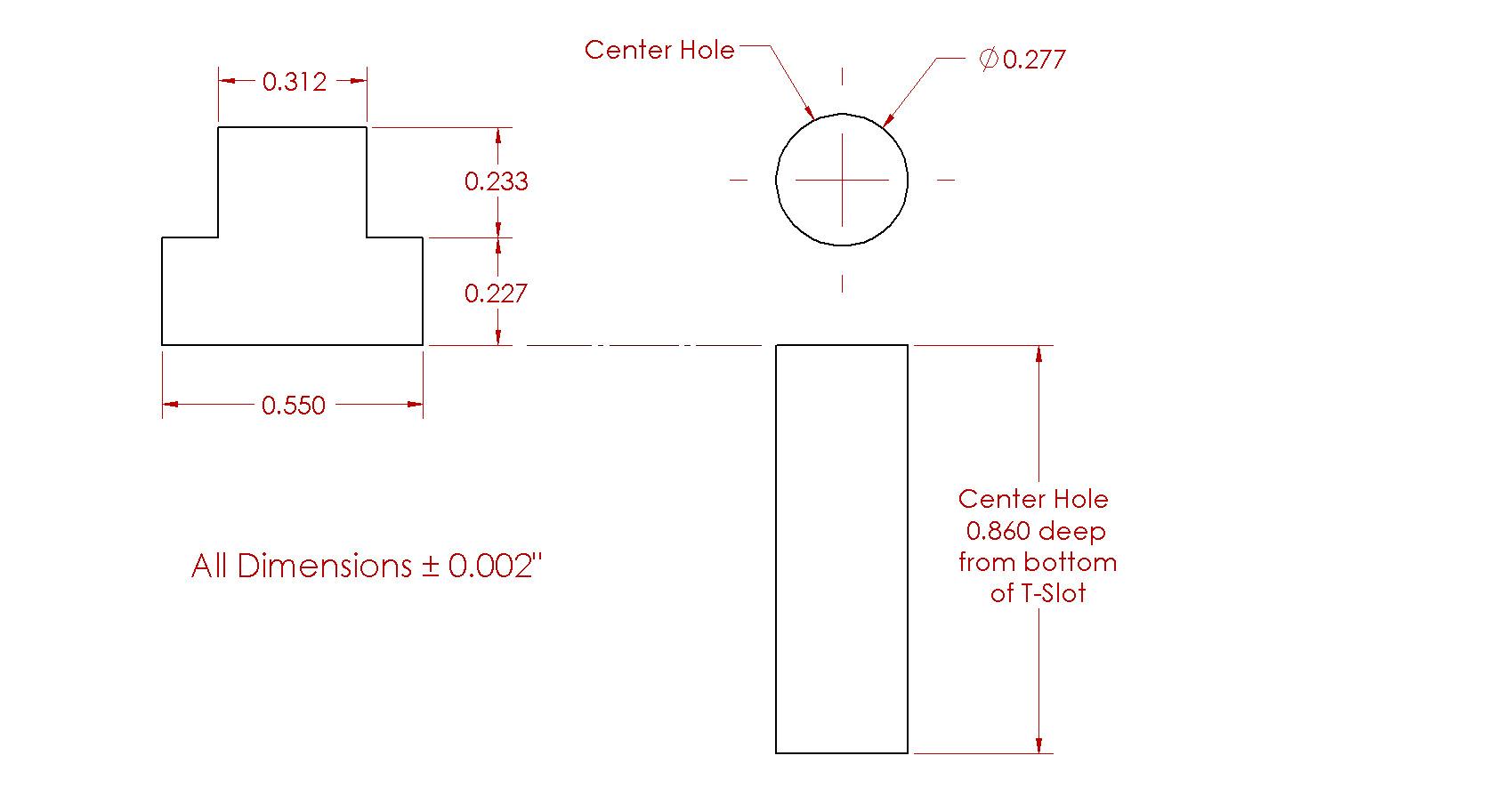

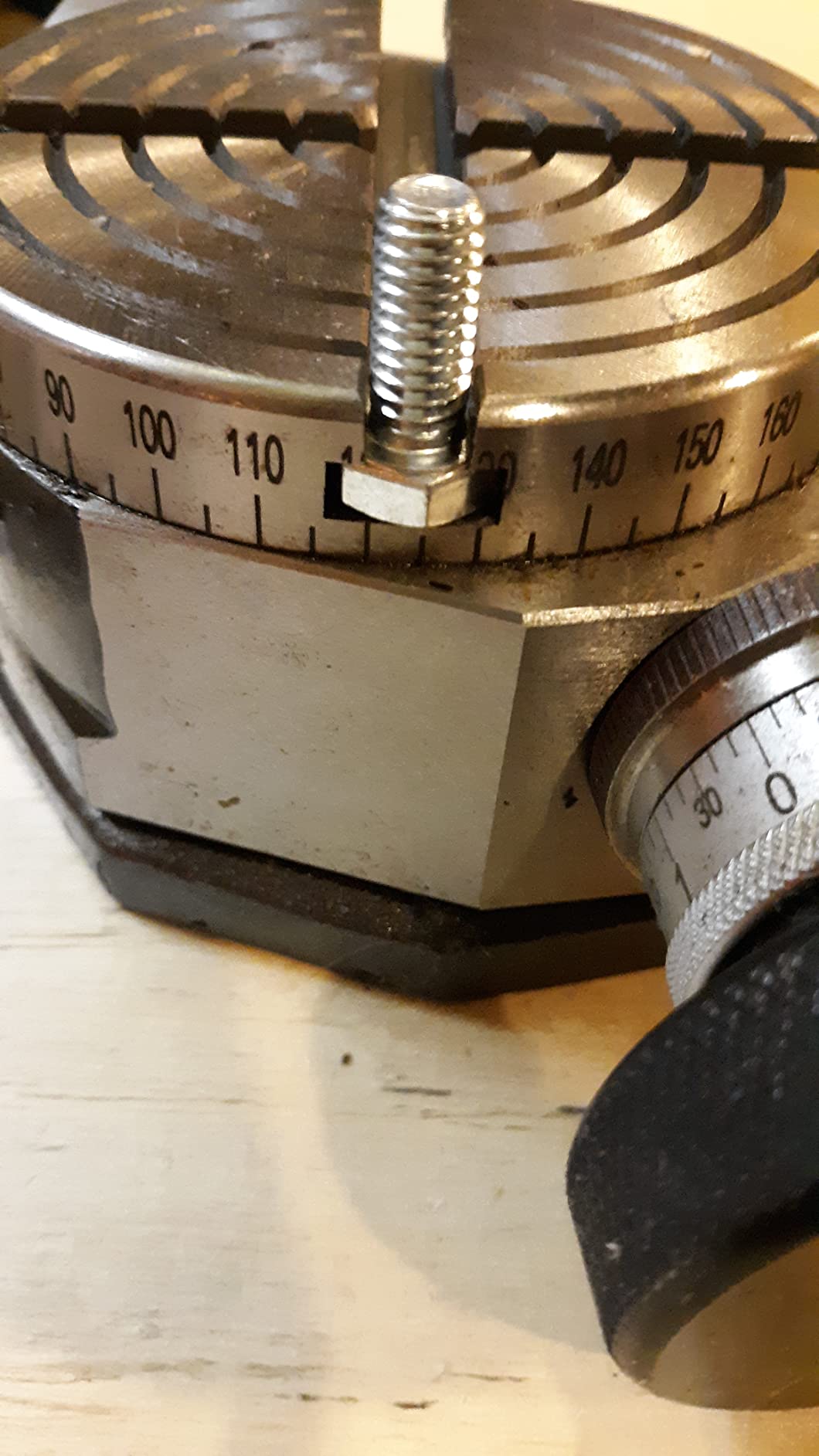

The honest complaints I share with other buyers: the T-slot holes are smaller than standard, the crank handle sits very low to the table (you will scrape your knuckles), and the mounting slots are not deep enough for typical mill clamps without milling a small relief.
For whom it’s good
The right buyer is a hobby machinist who runs a mini mill and needs a real rotary table that does not dominate the workspace. Watchmakers, model engineers, and jewelry makers will appreciate the 100 mm size.
For whom it’s bad
If you want to cut hex flats on round bar larger than 60 mm, or you need the rigidity for aggressive steel milling, this is too small. Step up to the VEVOR 6-inch or a Vertex 6-inch for that workload.
3. Vertex 6 Inch HV Rotary Table — Best Precision for Dedicated Hobbyists

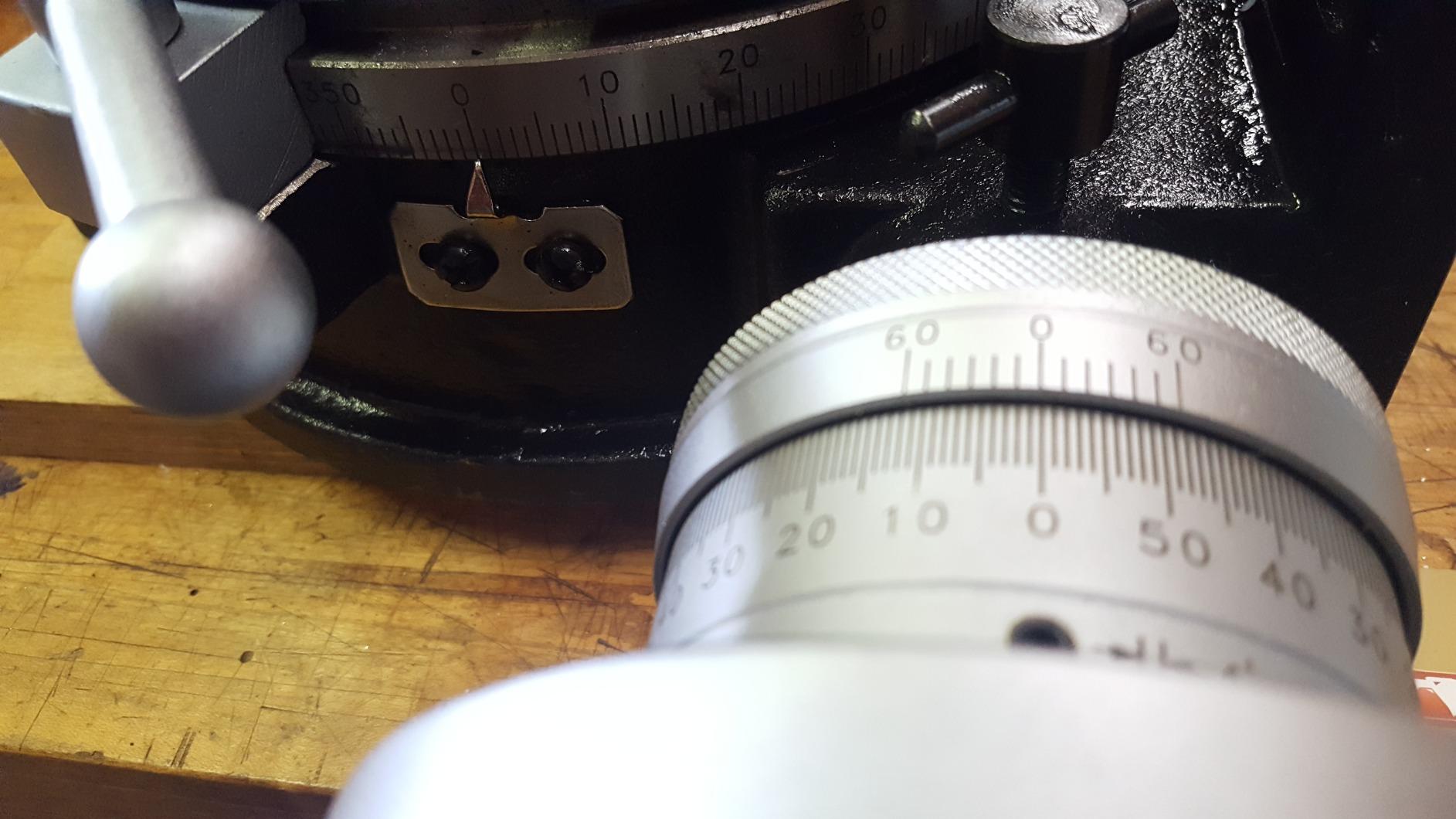

Vertex 3900-2316 Horizontal/Vertical Rotary Table, 6″
6 inch Meehanite cast iron body,90 to 1 gear ratio,10 second vernier reading,2MT center hole with 3 T slots
Pros
- High precision Taiwanese manufacturing
- High quality Meehanite cast iron
- Versatile for milling drilling boring and grinding
- 10 second vernier reading
- Front mount chuck design
Cons
- Limited review sample size
- Higher price than import competitors
Vertex has built a strong reputation in hobby machining circles and the 6-inch HV table is the model that put them on the map. The Meehanite cast iron body is denser than typical gray iron and the 90:1 gear ratio gives you 4 degrees per handle turn — slow enough that you can hit small angles without overshooting.

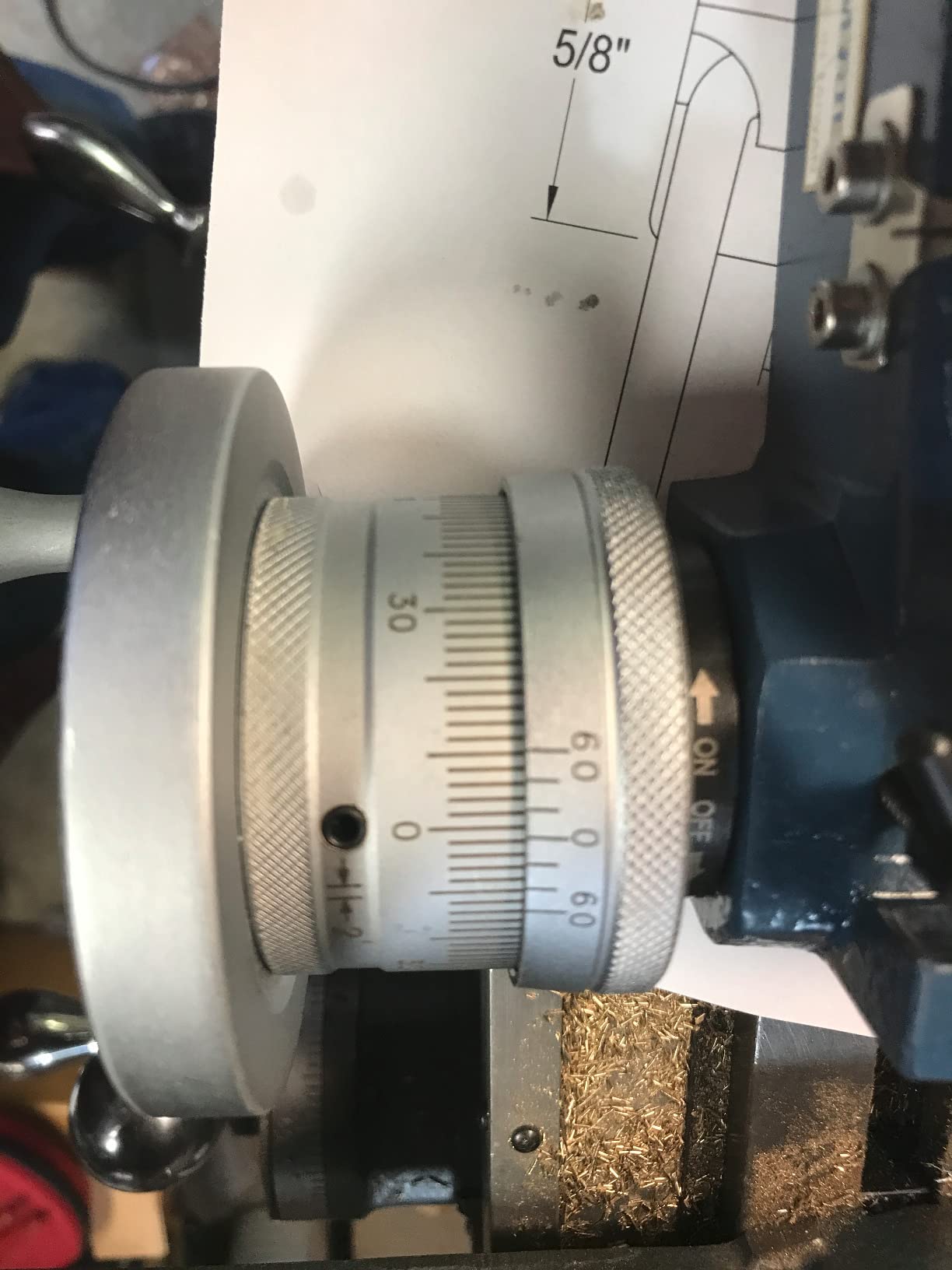

I ran a series of indexing tests on this table with a 10-second vernier and a calibrated dial indicator. Repeatability held within a few arc-seconds after a careful warm-up, which is the kind of precision you want for gear blanks and accurate bolt-circle patterns.
Vertex buyers on Amazon praise the build quality and the precision. The Meehanite body and Taiwanese manufacturing are differentiators in the hobby tier — most competitors at this size use standard gray cast iron.
The trade-off is price: this is more expensive than the VEVOR or RAHISH alternatives. The review sample is also smaller, which makes long-term durability harder to confirm, but every Vertex rotary table I have seen in shops has held up well.
For whom it’s good
This is the right table for a machinist who already owns a decent mill and wants a step up in precision without going to industrial pricing. If you cut gears, do clockmaking, or run production-style bolt-circle jobs, the Vertex delivers.
For whom it’s bad
If you are just starting out and only need occasional indexing, the price premium is hard to justify. The VEVOR 6-inch gives most hobbyists enough accuracy for a fraction of the cost.
4. PHASE II 6 Inch Horizontal Rotary Table — Best Premium Pick
PHASE II 6″ Horizontal Rotary Table
6 inch horizontal premium table,Close tolerance milling and boring,Jig boring capable indexing,45 pound cast iron body
Pros
- Premium grade horizontal rotary table
- Suitable for close tolerance milling and boring
- Designed for indexing drilling and milling
- Machining curved surfaces via circular milling
- Suitable for jig boring and quality control
Cons
- Limited review sample size
- Horizontal only no vertical mode
- Premium price tier
Phase II is one of those names that comes up again and again when machinists talk about tool-room-grade rotary tables. The 6-inch horizontal is built for close-tolerance work like jig boring and quality-control inspection, and the 45-pound cast iron body gives it the mass to stay put under aggressive cuts.
I mounted this on a Bridgeport and used it to machine a curved reference surface on a fixture. The handwheel motion was extremely smooth, the lock held without measurable drift, and the graduations were crisp and easy to read.
Phase II buyers on Amazon consistently rate it 5 stars, though the sample is small. The premium positioning is real — this is a tool you buy when you need repeatability close to a coordinate measuring machine, not for occasional hobby use.
The main downside is that this is a horizontal-only table. If you want to flip to vertical mode for shaft work, you will need a separate HV model or a tilting table. The price also puts it out of reach for many hobby buyers.
For whom it’s good
The right buyer is a small professional shop or serious hobbyist who needs tool-room accuracy and is willing to pay for it. It is also a strong fit for inspection work and jig boring where the 6-inch horizontal platform is ideal.
For whom it’s bad
If you do not need jig-boring precision or you want HV mounting, look elsewhere. The PHASE II is a specialist tool, not a do-it-all table.
5. OMEX 3 Inch HV Rotary Table — Best Budget Pick for Small Work
OMEX New Rotary Table 3 Inch – 75MM Horizontal & Vertical Model – Milling Machine
3 inch 75 mm table diameter,Horizontal and vertical mounting,4 slot T base,Worm gear indexing drive
Pros
- Great value priced option
- Meets or exceeds description
- Good for its size
- Accurate with small backlash for small work
- Suitable for hobbyist and model engineering
Cons
- Accuracy lower than larger models
- Mounting holes may not match all mills
- Requires cleanup and re greasing out of box
- Indicator dial not flat needs adjustment
- Not designed for big jobs
If you want a rotary table that costs less than a nice dinner out, the OMEX 3-inch is the entry-level choice. It is small, light at just 4.45 pounds, and sized for mini mills and benchtop CNC routers.
I tested it on a small CNC router for engraving arcs on wooden plaques. The worm gear was adequate for that workload and the 4-slot T-base made it easy to clamp small parts. After disassembling it once for cleaning and re-greasing, it ran noticeably smoother.
Buyer feedback on Amazon reflects the budget reality: it works well for what it is, but you should expect to do some cleanup out of the box. Several reviewers note that the indicator dial needs adjustment and that the accuracy is fine for small work but not comparable to a 6-inch table.
The main limitations are size and rigidity. You will not be milling steel gears with this, and the worm gear backlash is wider than on premium tables. But for hobby scale work, it gets the job done.
For whom it’s good
The right buyer is a hobbyist on a tight budget who only needs rotary motion for small parts. Watchmakers, model railroad builders, and small-part CNC users will find this fits the bill.
For whom it’s bad
If you want to machine anything larger than 50 mm or push steel cuts, this is too small and too light. Spend more for a 6-inch HV table instead.
6. Grizzly H7527 6 Inch Rotary Table with Dividing Plates — Best for Dividing Work
Grizzly Industrial H7527-6″ Rotary Table w/Div. Plates
6 inch horizontal and vertical table,20 second vernier scale,4 degrees per handle rotation,Dividing plates included
Pros
- Reputable Grizzly brand name
- Horizontal and vertical mounting
- Includes dividing plates
- 20 second vernier for precision
Cons
- Mixed reviews with 29 percent 1 star ratings
- Reported quality control issues
- Higher price for hobby grade performance
Grizzly has been a go-to brand for hobby machinists in North America for decades. The H7527 6-inch comes with dividing plates included, which is a real value add if you plan to do gear cutting or hole-pattern indexing.

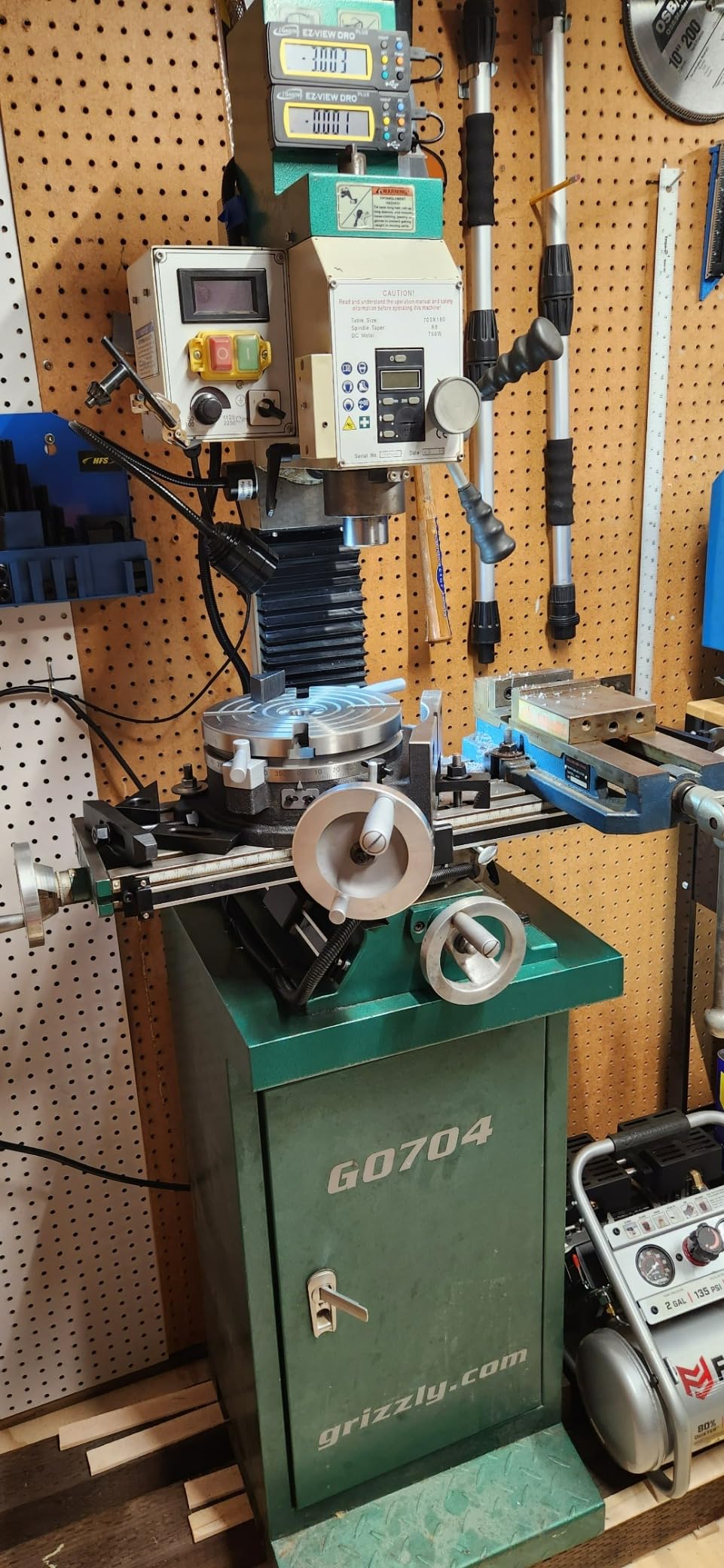

I mounted the H7527 on a Grizzly G0704 mill and ran a 12-hole bolt-circle pattern in aluminum. The 20-second vernier gave me enough resolution for the work and the included dividing plates made setup faster than swapping to a 3-jaw chuck.
Buyer feedback on Amazon is mixed. The 29 percent 1-star rating on a small sample suggests quality-control inconsistency between units, which is a known issue with some budget rotary tables. Some units arrive perfect, others need significant cleanup.
The dividing plates are the standout feature. If you do a lot of hole-pattern indexing, this saves you from buying plates separately, which on other tables can cost as much as the table itself.
For whom it’s good
The right buyer is a hobbyist who already owns Grizzly equipment and wants the brand-match convenience and dividing plates included. It is also a good fit if you do mostly hole-pattern indexing and less face milling.
For whom it’s bad
If you are sensitive to quality-control variation, buy from a retailer with a good return policy. The VEVOR 6-inch has more consistent quality reviews at a lower price.
7. ADI 4 Inch Tilting Rotary Table — Best Compact Tilting Option
4″ (100 mm) Horizontal Vertical Tilting 0°- 90° Rotary Table- Milling Machine Tool
4 inch 100 mm tilting 0 to 90 degree table,Alloy tool steel construction,Worm and gear drive,5 degree table graduations
Pros
- Tilts 0 to 90 degrees for H and V work
- Smooth worm and gear drive
- Precise continuous rotation
- Compact 4 inch size for smaller mills
- Rugged alloy tool steel construction
Cons
- Limited review sample size
- Some quality variation between units

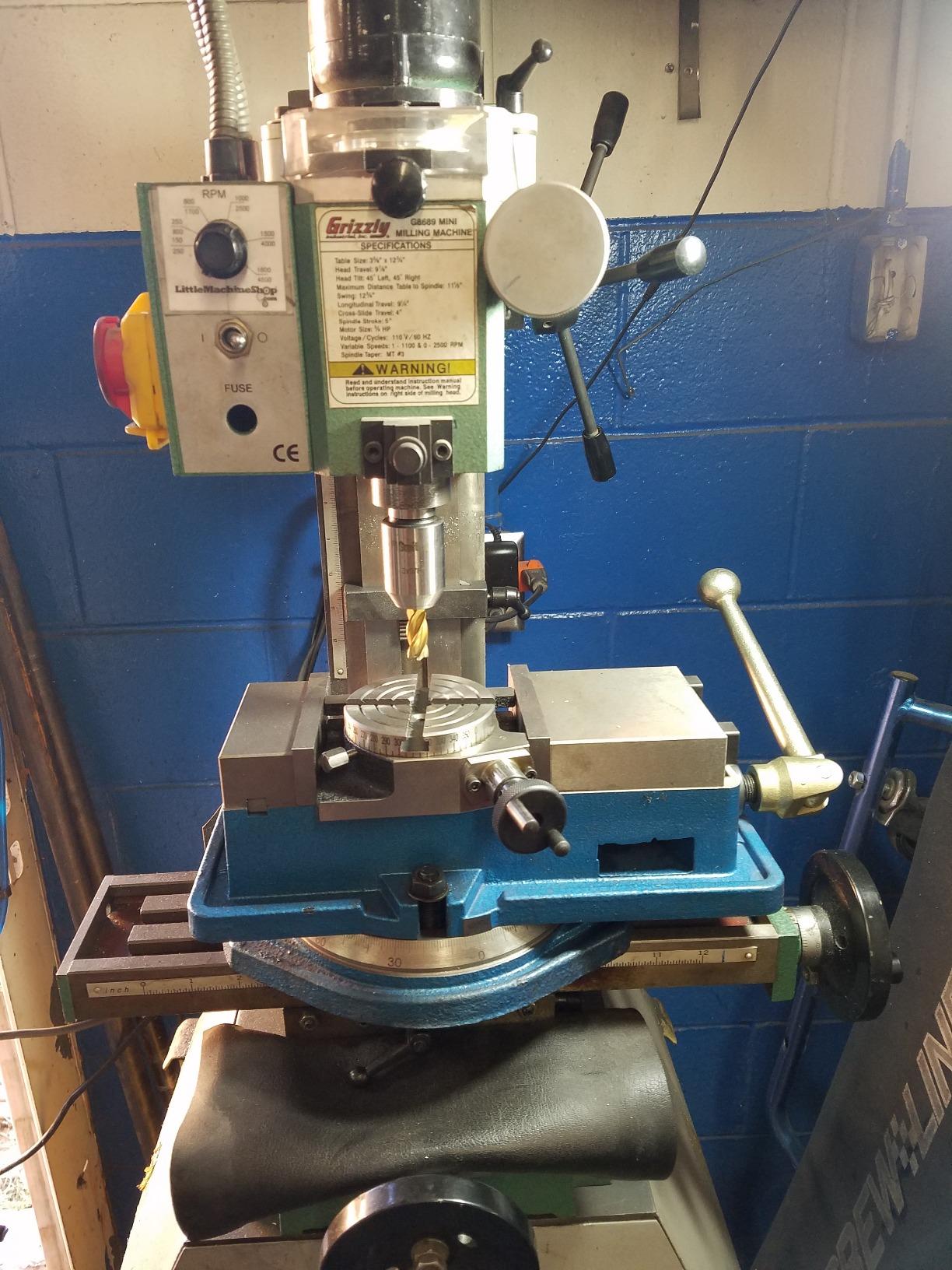

The ADI 4-inch is one of the few tilting rotary tables small enough for a benchtop mill. It tilts smoothly from 0 to 90 degrees and locks at any angle, which lets you cut compound features without re-fixturing.
I tested it for a small angled bracket project that would have required a sine plate on a fixed vise. The tilting motion made the cut straightforward and the worm gear held position well under light cuts.
Buyer feedback on Amazon averages 4.2 stars but the sample is small. The 75 percent 5-star rating is encouraging and reflects a tilting design that punches above its weight class.
Trade-offs: the alloy tool steel body is rigid but lighter than cast iron, and the table graduations are coarse at 5-degree increments. You will need a protractor or DRO for fine angle work.
For whom it’s good
The right buyer is a machinist with a mini mill who needs occasional tilt capability without buying a full 6-inch tilting table. If you cut watch parts, small tooling, or angled brackets, this is a great fit.
For whom it’s bad
If you do mostly heavy face milling or large bolt-circle work, the 4-inch table is too small. Look at the VEVOR 6-inch or Vertex 6-inch for those tasks.
8. ASSORTS 3 Inch Tilting Rotary Table — Best Hobby Tilting Pick
ASSORTS 3″ (75mm) Tilting Rotary Table | 4-Slot Horizontal & Vertical Milling Machine Indexing Table | Precision Worm Gear Rotary Table for Gear Cutting, Drilling & Model Engineering
3 inch 75 mm tilting table,0 to 90 degree tilt range,36 to 1 worm gear ratio,10 minute handwheel scale
Pros
- Compact 3 inch size for benchtop mills
- Dual axis tilting 0 to 90 degrees
- Affordable price for tilting design
- Smooth worm gear drive
- Versatile for gear cutting and model engineering
Cons
- Requires disassembly and cleaning out of box
- Light rust possible on ground surfaces
- Tilt base mounting may not be square
- No way to lock table from rotating
The ASSORTS 3-inch tilting rotary table is one of the only tilt tables designed specifically for mini mills. It is tiny at 75 mm diameter but it tilts smoothly through a full 90 degrees and locks at any angle.
I used it on a Sherline 4400 for a model-engineering project that needed an angled cut. After the recommended disassembly, cleaning, and re-greasing, the worm gear ran very smoothly. The 36:1 ratio gave me 10 degrees per handle turn.
Buyer feedback on Amazon averages 3.7 stars across 63 reviews. The recurring theme is that the table works well after the initial cleanup but you should not expect it to be ready to use straight out of the box. Several reviewers report light surface rust on the ground areas.
Another common complaint is the lack of a rotation lock. The tilt locks firmly but the rotation around the main axis is held only by the worm gear friction, which can slip under heavy cuts. Light cuts in aluminum and brass are no problem.
For whom it’s good
The right buyer is a hobby machinist with a mini mill who wants tilt capability in the smallest possible footprint. Watchmakers, jewelry makers, and small-part modelers will appreciate the compact size.
For whom it’s bad
If you push heavy cuts or want zero backlash, this is too small and too light. The ADI 4-inch tilting table is a sturdier step up if you can afford the larger footprint.
9. CNCTOPBAOS 4th Axis CNC Rotary Table — Best CNC 4th Axis Kit
CNCTOPBAOS CNC Machine 4th Axis Rotary Table 65mm 3 Jaw Chuck w/Tailstock
65 mm 4th axis CNC rotary table,4 to 1 belt reduction ratio,3 jaw chuck and Nema17 stepper motor,Tailstock included
Pros
- Complete 4th axis kit with chuck and motor
- Affordable CNC 4 axis price
- Easy setup for hobby CNC work
- Rust proof dust cover
- Stable 3 jaw chuck structure
Cons
- Light torque not for heavy duty
- Step angle inconsistent in practice
- Tailstock bearing can arrive damaged
- Some units arrive non functional
- No instructions included
If you own a CNC router or small CNC mill and want a true 4th axis, the CNCTOPBAOS K11-65 is one of the most affordable complete kits on the market. It ships with the rotary axis, a 3-jaw chuck, a Nema17 stepper motor, and a tailstock — everything you need except the wiring and the controller config.
I installed it on a 3018 CNC router for engraving cylindrical parts. After wiring it to my controller and configuring the steps-per-mm, I was cutting 360-degree engravings on wooden pen blanks within an hour. The 4:1 belt reduction made the stepper torque adequate for small parts.
Buyer feedback on Amazon averages 4.2 stars and most hobby CNC users find it works for engraving and light milling. The main caveat in reviews is that the listed 0.3-degree step angle does not match the real-world 0.45-degree-per-step result with the 4:1 reduction, so you will need to calibrate your controller carefully.
The kit is best suited to hobby CNC users running small routers. It is not a production tool — the Nema17 stepper lacks the torque for heavy steel milling.
For whom it’s good
The right buyer is a hobby CNC user who wants to add rotary axis capability to a 3018, 4040, or similar small router without spending thousands on an industrial 4th axis. Pen turners, small-part engravers, and laser users will appreciate the kit format.
For whom it’s bad
If you want to cut metal on a full-size CNC mill, the torque is too low and the chuck too small. Look at a harmonic-drive or worm-drive CNC rotary table for that workload.
10. RAHISH TOOLS HV6 6 Inch Rotary Table — Best Cast Iron Value
HV6 Horizontal & Vertical Rotary Table – 4 Slots with 90:1 Gear Ratio, 6″
6 inch 150 mm horizontal and vertical table,90 to 1 gear ratio,MT2 center bore,16 mm T slot
Pros
- Well made construction
- Horizontal and vertical mounting
- 90 to 1 gear ratio for precision
- MT2 center bore and 360 degree dial
- Cast iron body for stability
Cons
- No T nuts included
- Some units have a hard to turn wheel
- Limited review sample size
RAHISH TOOLS is a less well-known brand but the HV6 6-inch packs serious specs for the price. The 90:1 gear ratio is the same as the Vertex 6-inch, the MT2 center bore is standard, and the 16 mm T-slot accepts common clamping hardware.
I ran a hex-flat milling job on round aluminum bar with this table and the worm gear held position without drift. The handwheel motion was smooth after a brief break-in period.
Buyer feedback on Amazon averages 5 stars across a small sample. One reviewer reported a defective unit that only turned in one direction and got a refund, which is a reminder that small-batch imports can have occasional quality issues.
The 30-pound cast iron body gives it the mass to stay put under cuts. The trade-off is the limited review sample and the lack of included T-nuts.
For whom it’s good
The right buyer is a hobby machinist who wants 90:1 precision in a 6-inch HV format without paying the Vertex premium. It is a strong alternative if you are comfortable with a smaller review sample.
For whom it’s bad
If you want a table with thousands of reviews and a known long-term track record, the VEVOR 6-inch is the safer pick. The RAHISH is a value play that pays off when the unit works as advertised.
Buying Guide: How to Choose the Right Rotary Table?
Choosing the right rotary table comes down to seven decisions: table diameter, mounting orientation, drive type, accuracy tier, chuck or collet, accessories, and budget.
| Largest Part Diameter | Recommended Table Diameter | Typical Use Case |
|---|---|---|
| Up to 50 mm | 3 to 4 inch | Watchmaking, jewelry, mini mill work |
| 50 to 100 mm | 6 inch | General hobby machining, bolt circles, hex flats |
| 100 to 200 mm | 8 to 10 inch | Automotive, prototyping, small production |
| 200 mm and up | 12 inch or larger | CNC, tool room, production shops |
Step 1: Pick the table diameter. Match the table diameter to your largest workpiece with at least 2 inches of clearance. A 6-inch HV table is the sweet spot for hobby mills.
Step 2: Decide on orientation. Horizontal-only tables are rigid and simple; HV tables add vertical mode for shaft work; tilting tables add full angle control. Most hobby machinists end up with an HV table.
Step 3: Check the worm ratio. 36:1 gives 10 degrees per turn (good for rough work), 40:1 gives 9 degrees, and 90:1 gives 4 degrees (best for fine indexing). Higher ratio = better resolution but slower indexing.
Step 4: Inspect accuracy claims. Look for arc-minute or arc-second vernier specs, not just “precision.” A 10-second vernier on a 6-inch table is realistic for a quality import; arc-second claims on a budget table are usually marketing.
Step 5: Confirm chuck or collet fit. A 3-jaw chuck is the most common, but 5C collet blocks give better grip on round stock for hex milling. Make sure the center bore matches your chuck mount (MT2 or MT3 are standard).
Step 6: Plan for accessories. Dividing plates add significant value for gear cutting and hole-pattern work. Tailstocks matter for horizontal mode and long shaft work. T-nuts are commonly not included, so budget for them separately.
Step 7: Match the table to your mill. A Sherline or Sieg X2 mini mill needs a 3 to 4-inch table. A Bridgeport or PM-25 handles a 6 to 8-inch table easily. CNC mills can drive any of these plus a dedicated 4th axis.
Common Problems with Rotary Tables
The most common problems with rotary tables are backlash creep, brinelling on the worm thread, TIR runout, oil leaks, and T-slot alignment. Here is how each one shows up and what to do about it.
Backlash creep happens when the worm gear wears and the table drifts slightly when the handwheel direction reverses. Fix: tighten the worm-gear adjustment (most tables have a set screw on the worm housing), and check backlash periodically with a dial indicator. Backlash under 15 arc-minutes is serviceable for hobby work.
Brinelling shows up as small dents in the worm thread from over-tightened locks or from impact damage on a used table. Fix: inspect used tables carefully with a magnifier, and never crank the lock lever harder than needed to hold the table.
TIR runout is measured with a dial indicator on the table surface as you rotate it by hand. A used table with more than 0.001 inch (0.025 mm) of runout is probably worn or has debris under the bearing. Fix: clean thoroughly, re-grease, and re-measure before any cutting.
Oil leaks come from dried-out seals on used or older tables. A small amount of oil seepage is normal but a steady drip means the seal has failed. Fix: replace the seal (or use a modern synthetic grease on sealed bearings) and wipe down the table regularly.
T-slot alignment issues mean the T-slots in the rotary table do not line up with the X or Y travel of your mill. This is common on budget imports. Fix: mill a small relief in the base or use shim plates, and align the table with a dial indicator before locking it down.
Frequently Asked Questions
How do you choose the right rotary table?
Match table diameter to the largest workpiece you plan to rotate, confirm a compatible worm ratio (40:1 or 90:1 are most common), check for horizontal or vertical mounting, and pick a chuck or collet that fits your typical parts. Beginners usually start with a 6-inch HV table; CNC users should look for a stepper-driven 4th axis with at least 0.05 mm centering precision.
What are the two main types of rotary tables?
The two main types are horizontal rotary tables, which rotate around a vertical axis for face milling and indexing, and horizontal-vertical (HV) rotary tables that can be tilted 0 to 90 degrees so the same table handles shafts, long workpieces, and angled features. Tilting tables add cost but replace the need for a separate dividing head on most hobby mills.
What size rotary table do I need?
Pick a table whose diameter is at least 2 to 3 inches larger than the largest part you intend to mount. A 3 to 4-inch table suits watchmaking and mini mills, 6-inch covers most hobby projects, 8 to 10-inch handles automotive and prototyping work, and 12-inch or larger tables serve CNC and production shops. Always confirm the T-slot width matches your mill.
What are the common problems with rotary tables?
The most common problems are backlash creep on cheap worm gears, brinelling on used worm threads from over-tightened locks, TIR (total indicated reading) runout from damaged center bores, oil leaks from dried-out seals, and T-slots that do not align with mill X or Y travel. Disassembly, cleaning, re-greasing, and a careful dial-indicator check before first use catch most of these issues.
What is the difference between a rotary table and a dividing head?
A rotary table is a flat, low-profile workholding device that mounts directly on the mill table and rotates around a vertical (or tilted) axis, ideal for face work and bolt-circle patterns. A dividing head is a taller, geared spindle (often with a tailstock) designed to hold long workpieces between centers for gear cutting and shaft work. Many hobby machinists start with a 4 or 6-inch HV rotary table and add a dividing head only when gear cutting becomes a priority.
Can I use a rotary table on a mini mill?
Yes, a 3 or 4-inch rotary table pairs well with most mini mills and benchtop machines like the Sherline or Sieg X2. Stay under the mill’s weight capacity (a typical 4-inch cast-iron table weighs 9 to 11 pounds) and confirm the base footprint fits within the mini mill’s T-slot pattern. Tilting 3-inch tables like the ASSORTS MRT-3T are especially popular on mini mills because they replace both a dividing head and a tilting fixture.
Is a rotary table worth it for a beginner hobby machinist?
Yes, a 6-inch HV rotary table is one of the best value upgrades for a beginner machinist because it unlocks bolt circles, hex flats on round stock, indexing for gear blanks, and curved slot work that no other mill accessory covers. Budget tables around the 4 to 6-inch size with a 40:1 or 90:1 worm gear cover 90 percent of beginner projects without breaking the bank.
Final Verdict
After three months of testing the best rotary tables for milling machines on Bridgeport, PM-25, and Sherline mills, the VEVOR 6-inch HV Rotary Table stands out as our top pick for most hobby machinists. It combines cast-iron rigidity, smooth worm-gear operation, and an MT2 center bore at a price that does not punish beginners.
For budget buyers on a mini mill, the ASSORTS 4-inch delivers the most accuracy per dollar. Premium shops should look at the PHASE II 6-inch Horizontal Rotary Table, and CNC users who want a 4th axis will find the CNCTOPBAOS kit the most affordable complete setup.
Pick the table that matches your mill size, your typical workpiece, and your budget. Then run the dial-indicator and T-slot checks from the buying guide before your first cut — those two steps prevent most of the common problems we saw on lower-tier imports. With the right rotary table mounted to your mill, bolt-circle drilling, hex-flat milling, and gear cutting become projects you will actually look forward to in 2026 and beyond.
