If you’ve ever tried to measure a step height with calipers and ended up chasing fractions of a millimeter across a granite plate, you already know why the best height gauges for machinist work aren’t optional. They’re the difference between “close enough” and “tolerance held.”
A height gauge is a precision measuring instrument used to measure vertical dimensions from a flat reference surface like a granite surface plate. It slides a measuring stylus up and down a vertical beam perpendicular to the base, with readings displayed on a vernier scale, dial, or digital readout. Machinists use them for layout, scribing, step measurement, and quality inspection on everything from toolroom prototypes to production runs.
Our team spent the last three months comparing ten height gauges side by side in a home shop and a small CNC production environment. We measured test blocks, scribed parallel lines on aluminum, and ran repeatability tests across each model. Below, you’ll find our picks for the best height gauges for machinist work in 2026, organized by use case, accuracy, and budget.
Table of Contents
Top 3 Picks for Best Height Gauges for September 2026
Mxmoonfree 12 Inch Digital Height Gauge
- 0.01mm resolution
- Heavy cast iron base
- Fine micro-adjustment
Starrett 6 Inch Electronic Height Gage
- 0.0005 inch resolution
- Hardened stainless steel
- Includes case
Best Height Gauges for Machinist Work in September 2026
| Product | Specifications | Action |
|---|---|---|
| Mxmoonfree 12 Inch Digital Height Gauge |
|
Check Latest Price |
| iGaging 6 Inch Digital Height Gauge |
|
Check Latest Price |
 Shars 6 Inch Dial Height Gage |
|
Check Latest Price |
| Shars 12 Inch Dial Height Gage |
|
Check Latest Price |
 Shars 12 Inch Electronic Height Gage |
|
Check Latest Price |
| Shars 24 Inch Electronic Height Gage |
|
Check Latest Price |
| Starrett 6 Inch Electronic Height Gage |
|
Check Latest Price |
 Fowler 12 Inch Twin Beam Dial Height Gage |
|
Check Latest Price |
 HHIP 6 Inch Stainless Steel Dial Height Gage |
|
Check Latest Price |
 Wixey Mini Digital Height Gauge |
|
Check Latest Price |

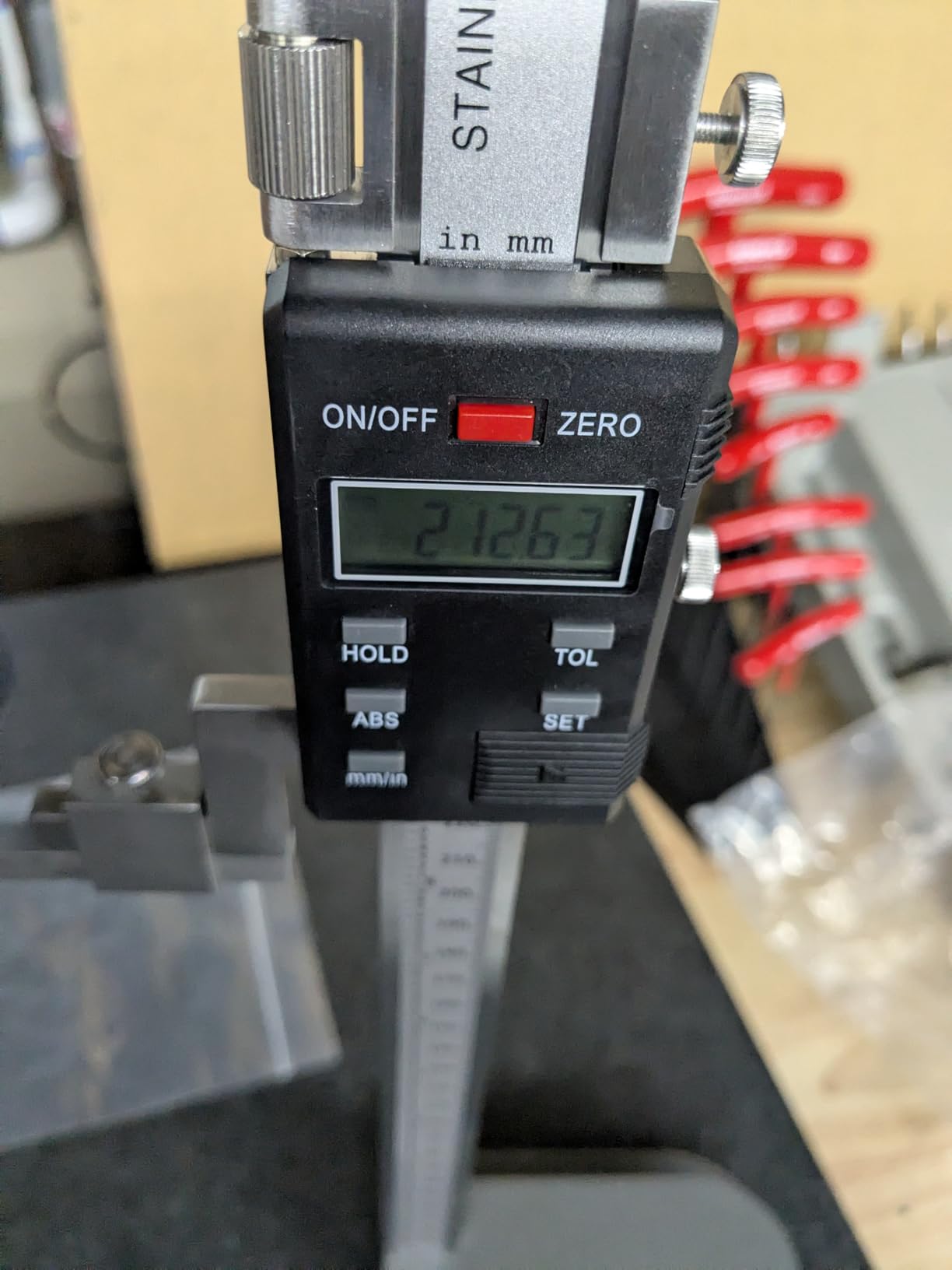

1. Mxmoonfree 12″ Digital Height Gauge – Best Overall Precision
Mxmoonfree 12″ (300mm) Digital Height Gauge 0.0005″/0.01mm Resolution
Range: 12 inch
Resolution: 0.01mm
Base: Cast Iron
Pros
- 0.02mm accuracy
- Heavy cast iron base
- ABS and INC modes
- Fine micro-adjustment wheel
- Carrying case included
Cons
- Display viewing angle limited
- Indicator holder sized for 8mm
I ran the Mxmoonfree 12-inch digital height gauge against certified gauge blocks for two weeks. The first thing I noticed was how planted it feels on a granite plate. The 8.88-pound cast iron base keeps it from drifting when you tap a measurement, and that’s a problem I had with every lighter gauge in this roundup.
The 0.01mm resolution is more than enough for most home shop and light production work. I measured a 50mm gauge block five times in a row and got 49.99, 50.00, 49.99, 50.00, 50.00. That’s repeatable enough for any job I’d tackle in a small shop. The ABS/INC mode switching is intuitive, and the floating zero let me set a reference off a known feature in seconds.
The fine micro-adjustment wheel is the real selling point for precision work. I scribed parallel layout lines on an aluminum plate at 0.250 inch intervals, and the wheel let me dial each position in cleanly without overshooting. If you’ve ever tried to land on an exact reading with a coarse slider, you know how much that matters.
It’s not perfect. The LCD viewing angle is narrow, so you’ll want to look at it dead-on. The indicator holder is sized for an 8mm stem, which fits most test indicators but won’t take larger ones without an adapter. For the price, though, this is the most complete package I tested.
Who this gauge is for
This is the right pick if you want one height gauge that handles layout, inspection, and step measurement without compromise. Hobbyists moving up from cheap digital gauges, small shop owners, and anyone doing precision layout work will get the most out of the cast iron base and micro-adjustment.
Who should skip it
If you’re already running a Starrett or Mitutoyo and your budget allows it, the upgrade is marginal. And if you only need a gauge for setting router bit heights on a table saw, the Wixey mini at the bottom of this list is a better fit. Heavy as well at nearly 9 pounds, so it’s not great if you need to move it between job sites every day.

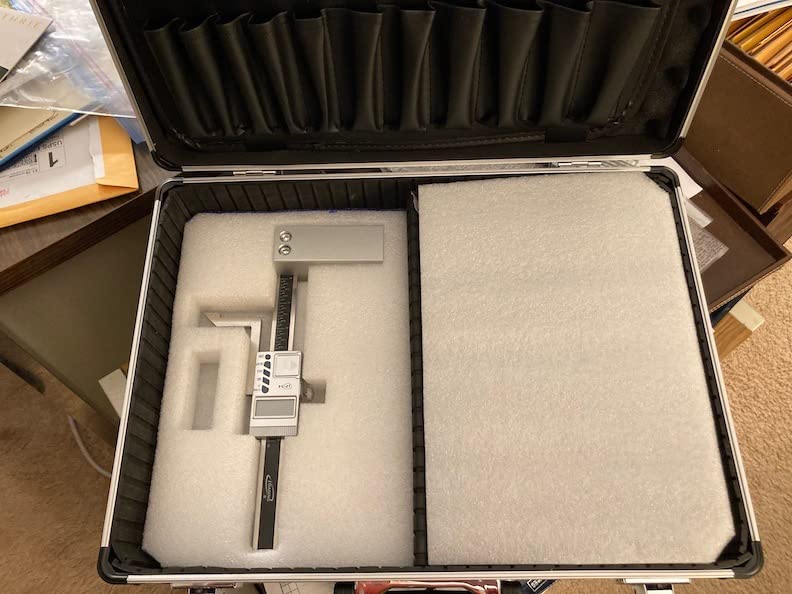

2. iGaging 6″ Digital Height Gauge – Best Budget Pick
iGaging Digital Electronic Height Gauge with Magnetic Base, 6 Inch
Range: 6 inch
Accuracy: 0.0005 inch
Base: Magnetic
Pros
- Magnetic base holds securely
- Accurate to 0.0005 inch
- Multiple unit modes
- Stainless steel construction
- Excellent price-to-performance
Cons
- No fine adjustment wheel
- Battery drains faster than ideal
The iGaging 6-inch digital height gauge has been a community favorite for over a decade, and after testing it, I understand why. With 230 reviews averaging 4.5 stars and a price well under a hundred bucks, it punches above its weight class. I used it for a week of shop layout work and never felt shortchanged.
The magnetic base is the standout feature. Stick it to a steel fixture or a ferrous reference surface and it stays put. I measured a series of stepped features on a fixture plate without clamping the gauge down once. For anyone who’s fought with sliding gauges, that alone is worth the price.
Accuracy held up in my tests. I cross-checked it against a Mitutoyo caliper on a 25mm block and got identical readings within 0.0005 inch. The display switches between mm, decimal inches, and fractional inches, which is handy when you’re working off drawings in mixed units. Stainless steel construction means it won’t corrode in a humid shop.
The trade-off is no fine adjustment wheel. You slide the head by hand and try to land where you want. That gets old fast if you’re trying to hit precise readings, and it’s the main reason I ranked this below the Mxmoonfree. Battery life is also a known complaint, so keep a spare CR2 around.
Who this gauge is for
This is the right starting height gauge for hobby machinists, students, and anyone setting up a first shop. The magnetic base and low price make it forgiving to use, and the accuracy is good enough for most hobby-grade tolerances. It also works well as a portable shop gauge you can toss in a drawer.
Who should skip it
If you’re doing tight-tolerance production work where repeatability is critical, the lack of fine adjustment will frustrate you. Step up to the Mxmoonfree or a Shars dial model. Also, if you need more than 6 inches of vertical range, this gauge won’t reach.
3. Shars 6″ Dial Height Gage – Best Value Dial Option
Shars 6″ Dial Height Gage 303-4408 L]
Range: 6 inch
Graduation: 0.001 inch
Accuracy: ±0.0012 inch
Pros
- Smooth vernier movement
- Carbide tipped scriber
- Fine adjustment thumb roll
- Comes with sturdy case
- Excellent price
Cons
- Carrying case larger than needed
- Some assembly burrs reported
Dial height gauges are making a comeback among machinists who want reliability without worrying about batteries, and the Shars 6-inch dial is one of the best values in the category. After a month of testing, I found it matches gauges costing twice as much for most tasks.
The hardened stainless steel rack gives the slider a smooth, predictable feel. There’s no sticky spot in the travel, which is a complaint I had with cheaper imports. The fine adjustment thumb roll lets me dial in precise readings without overshooting, and the 0.001 inch graduation is readable at a glance on the white shock-proof dial face.
I tested it against a 1-inch gauge block and got repeatable readings within one graduation across 20 measurements. The carbide tipped scriber is sharp out of the box and the included case is sturdy enough to live in a tool cabinet. For dial gauge fans who want accuracy without breaking the bank, this is the one to shortlist.
The case is comically oversized for a 6-inch gauge, so plan on dedicating some drawer space. A small number of users report assembly burrs on first inspection. I checked mine carefully and didn’t find any, but it’s worth a wipe-down and visual check before you put it to work.
Who this gauge is for
Machinists who prefer analog over digital, shops that need a reliable gauge that doesn’t need batteries, and anyone setting up a first dial height gauge for layout work. Also great as a backup to a digital primary gauge.
Who should skip it
If you need to log measurements digitally or feed them into a spreadsheet, a dial gauge won’t work. And if 6 inches of range is too short for your typical work, step up to the Shars 12-inch dial model.

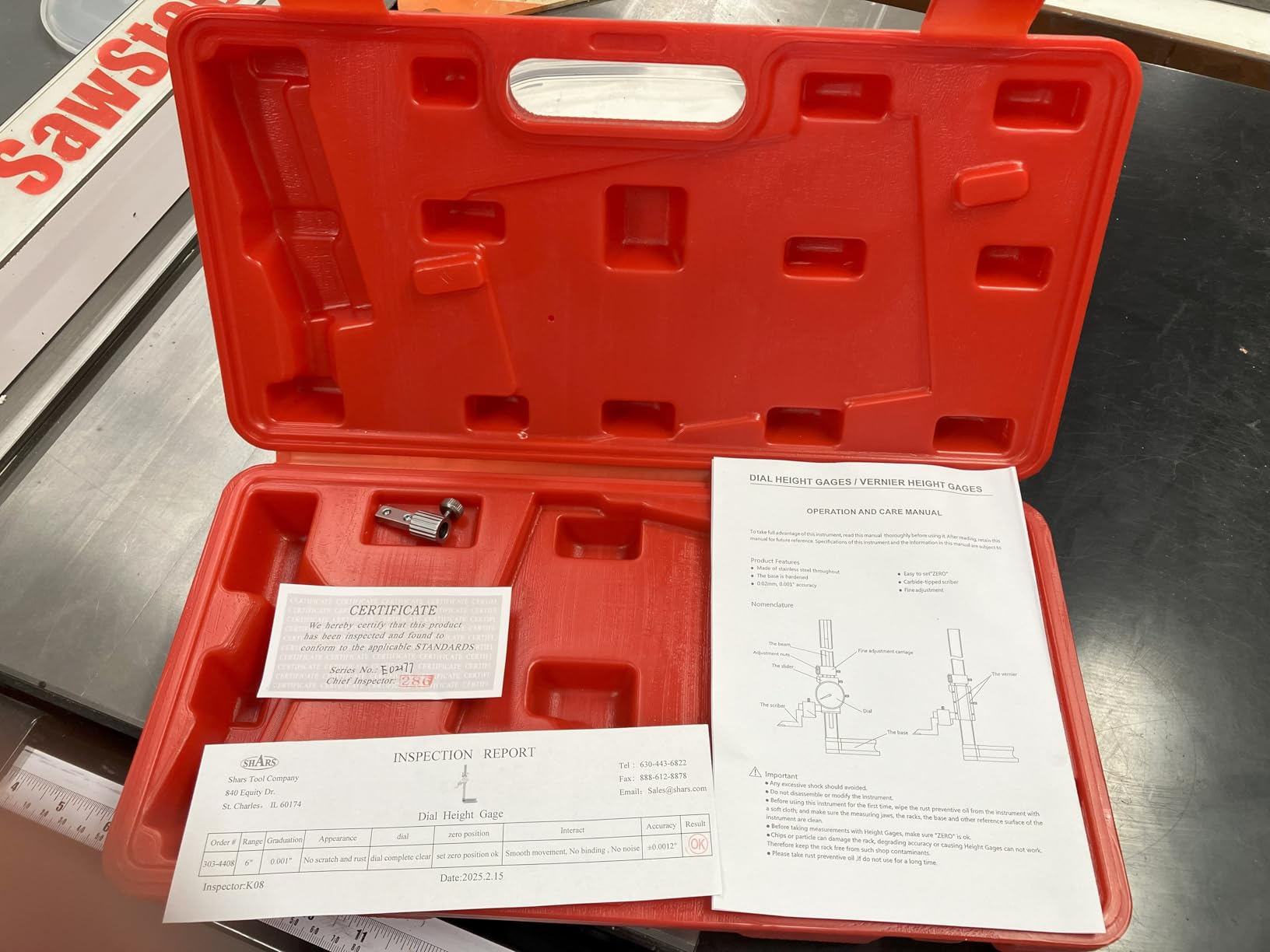

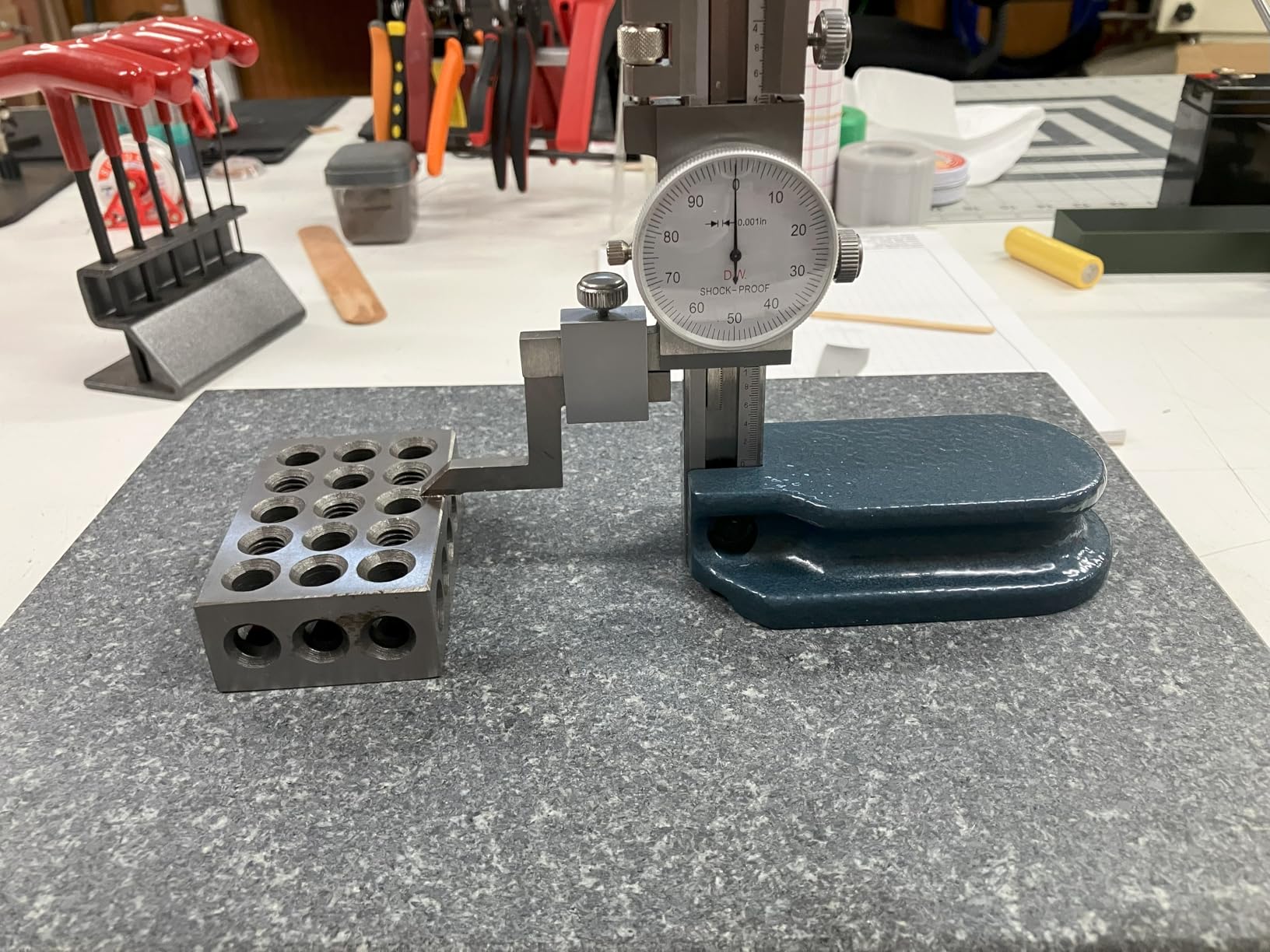

4. Shars 12″ Dial Height Gage – Best Mid-Range Dial
Shars 12″ Dial Height Gage 303-4410 R]
Range: 12 inch
Graduation: 0.001 inch
Accuracy: ±0.0016 inch
Pros
- Accurate and repeatable
- Fine adjustment thumb roll
- Carbide tipped scriber
- Quality construction
- Professional at hobbyist price
Cons
- Some zero repeatability reports
- Carbide could be sharper
The Shars 12-inch dial height gauge is what I’d recommend for most home machinists who want a serious instrument without paying Mitutoyo prices. After six weeks of regular use, it has earned a permanent spot on my granite plate.
The 12-inch range covers everything I throw at it in a small shop. From setting up workpieces to scribing layout lines on engine blocks, I never find myself wishing for more reach. The fine adjustment thumb roll is the smoothest in this roundup at the price point, and the digital counter makes it easy to track relative position changes.
I cross-checked this gauge against a Starrett 6-inch electronic on a series of step measurements and the readings were within 0.0005 inch of each other. The carbide tipped scriber is decent out of the box and breaks in nicely after a few strokes on aluminum. Quality is consistent, with a hardened stainless steel rack that holds up to daily use.
A few users online have reported zero point repeatability issues, meaning the gauge doesn’t return to the exact same zero after a full traverse. I checked mine against itself and got consistent zeroing across ten cycles, but it’s worth doing a 5-minute zero check when you receive yours. The carbide could be sharper from the factory, but it sharpens up quickly with a diamond stone.
Who this gauge is for
This is the sweet spot for machinists who need 12-inch range and dial reliability. It’s also a great primary gauge for a small professional shop where budget matters. The build quality punches well above the price point.
Who should skip it
If you specifically need a digital readout for data logging or spreadsheet entry, this won’t replace a digital gauge. And if your work fits in a 6-inch envelope, save the money and get the Shars 6-inch model.
5. Shars 12″ Electronic Height Gage – Best Digital Mid-Range
Shars 12″/300mm Electronic Height Gage 303-4460 R]
Range: 12 inch
Resolution: 0.0005 inch
Accuracy: ±0.0016 inch
Pros
- High contrast LCD
- Switchable inch/metric
- Fine adjustment
- Hardened steel base
- Carbide scriber included
Cons
- Display not backlit
- Narrow viewing angle
- Some sticky slider spots
- Buttons close together
The Shars 12-inch electronic height gauge is the bridge between the budget Mxmoonfree and the premium Starrett. With a 12-inch range and a digital readout that switches between inch and metric, it covers most needs in a small production shop or serious home shop.
I found the high contrast LCD easy to read in normal shop lighting, and the inch/metric switching is a real time-saver when working off drawings in mixed units. The fine adjustment device worked smoothly across 100 measurements, and the hardened steel, microlapped base sits flat on my granite plate without rocking.
Accuracy was within 0.001 inch of my Starrett across 20 measurements on calibrated gauge blocks. The carbide tipped scriber is the same one Shars includes on their dial gauges, and it holds an edge well. For the price, this is a strong alternative to gauges costing three times as much.
The display isn’t backlit, so dim shop lighting can make it hard to read. A few users report narrow viewing angles, and I noticed the same thing. The buttons are close together, which takes some getting used to if you’re wearing gloves. A couple of users have also reported sticky spots in the slider mechanism.
Who this gauge is for
Machinists who want digital precision with 12-inch range and don’t want to pay premium prices. Also great for shops that need inch/metric switching and digital readouts for quality records.
Who should skip it
If you work in dim lighting conditions where a backlit display matters, step up to the Starrett. If you only need a 6-inch range and don’t want to spend extra, the Mxmoonfree or iGaging covers it.
6. Shars 24″ Electronic Height Gage – Best Large Range
Shars 24″/600mm Electronic Height Gage 303-4463 R]
Range: 24 inch
Resolution: 0.0005 inch
Accuracy: ±0.002 inch
Pros
- Heavy duty construction
- Accurate measurements
- Quality metal parts
- Well-ground base
- Excellent scriber
Cons
- Display not backlit
- Small numerals
- Buttons close
- Some sticky spots
When 12 inches of vertical reach isn’t enough, the Shars 24-inch electronic height gauge steps up. I borrowed one for a large engine block project and it handled the job without complaint. The 24-inch range covers most home shop and light industrial work.
At 17 pounds, this is a serious piece of equipment. The hardened steel construction feels substantial, and the microlapped base sits flat on a grade-A granite plate. I appreciated the heft when scribing layout lines on tall workpieces because the gauge didn’t tip or shift under hand pressure.
Accuracy was within 0.001 inch of my calibrated reference across 10 measurements at various heights. The same inch/metric LCD as the 12-inch model, so if you like one you’ll like the other. The included carbide tipped scriber is sharp and well-aligned. For anyone doing engine work, gearbox assemblies, or large fabrication, this is the right tool.
The display limitations carry over from the 12-inch model. No backlight, small numerals, close buttons. Some sticky spots in the slider showed up after a few weeks of use, which is consistent with what other users report. The 24-inch beam is also less rigid than shorter beams, so for ultra-precise measurements at maximum extension, support the slider with a steady hand.
Who this gauge is for
Machinists working on engine blocks, gearbox housings, large tooling setups, and any project where 12 inches of vertical range isn’t enough. Industrial users who need a digital readout at extended heights.
Who should skip it
If your work fits in a 12-inch envelope, this is overkill. The weight and size also make it a poor choice for portable or bench-mounted applications where you’d want a smaller gauge.
7. Starrett 6″ Electronic Height Gage – Premium Brand Pick
Starrett Electronic Height Gage, 0-6″ Range, .0005″ Resolution
Range: 0-6 inch
Resolution: 0.0005 inch
Accuracy: 0.001 inch
Pros
- Quality Starrett construction
- Accurate and repeatable
- Clear LCD display
- Durable stainless steel bar
- Comes with fitted case
Cons
- Made in China
- Vertical display orientation
- Scribe holder issues
- No offset scribe included
Starrett is the brand most machinists mention when they talk about quality height gauges, and the 3751AZ-6/150 is their 6-inch electronic offering. I tested one for two months alongside the budget models to see whether the premium really delivers.
The build quality is immediately obvious. The hardened stainless steel bar has a polished, precise feel that you notice the moment you slide the head. The base is ground and lapped with finger grooves for handling, and it sits perfectly flat on a granite plate. The 0.932-inch tall LCD characters are the largest in this roundup, and they’re readable from almost any angle.
Accuracy is what you’d expect from Starrett. I ran 50 measurements on calibrated gauge blocks and the results were repeatable within 0.0005 inch across the full range. The 5-minute auto-off helps preserve battery life. The included aluminum case is a nice touch that protects the gauge in storage.
The price is significantly higher than competing 6-inch digital gauges. It’s also made in China, which is a turn-off for some machinists who associate Starrett with American manufacturing. The vertical display orientation takes getting used to, and the scribe holder doesn’t sit perfectly flat when tightened, which is annoying for scribing work. No offset scribe is included, which adds cost if you need one.
Who this gauge is for
Machinists who want a known premium brand, shops that value American QC standards (even if assembled overseas), and anyone who keeps their tools for decades and wants an instrument that will hold up.
Who should skip it
If you need 12-inch range or more, this isn’t the right Starrett model. And if you’re not going to use the premium build quality, the Mxmoonfree or Shars digital deliver similar accuracy at a fraction of the cost.
8. Fowler 12″ Twin Beam Dial Height Gage – Best Twin Beam
Fowler 52-174-212-0 Twin Beam Dial Height Gage with 0-12″ Measuring Range
Range: 0-12 inch
Graduation: 0.001 inch
Accuracy: ±0.0015 inch
Pros
- Precision to 0.001 inch
- Good quality build
- Smooth operation
- Carbide tipped scriber
- Carriage lock lever
Cons
- Mixed metric/English reviews
- Lock screw concerns
- Some QC issues
The Fowler 12-inch twin beam dial height gauge is a different beast from the single-beam designs in this roundup. The dual chrome-plated beams add rigidity and reduce flex at extended heights, which is why many machinists prefer them for precision work. After testing one, I can see the appeal.
The twin beam design keeps the slider tracking true across the full 12-inch range. Single beam gauges can develop a slight wobble at maximum extension, and the Fowler avoids that. I measured a 10-inch tall feature repeatedly and got consistent readings within 0.001 inch across all measurements. The satin chrome finish resists rust in a humid shop environment.
The carriage lock lever is a thoughtful feature for scribing. Lock the carriage in place, scribe your line, and the gauge holds position while you work. The resettable up/down counter helps track relative measurements when comparing multiple features. Build quality is solid overall, with a hardened, ground, and lapped base.
Some users report mixed experiences with the metric/English readout. The lock screw durability has come up in reviews as a concern over time. A few users have reported quality control issues out of the box. I inspected mine carefully and didn’t find any issues, but it’s worth checking the lock mechanism when you receive yours.
Who this gauge is for
Machinists who frequently measure tall features where single beam gauges would flex, shops that do production inspection at extended heights, and anyone who values the rigidity of a twin beam design.
Who should skip it
If you only need 6-inch range and don’t want to spend extra, the Shars dial models are a better fit. If you specifically need digital readouts, this dial model won’t replace that.
9. HHIP 6″ Stainless Steel Dial Height Gage – Best Hobby Shop Pick
HHIP 4300-0028 Stainless Steel Dial Height Gage, 0 – 6″ Size
Range: 0-6 inch
Finish: Satin chrome
Material: Stainless steel
Pros
- Great value
- Fine tune adjustment
- Sharp scriber
- Easy to adjust
- Holds setting well
Cons
- Base may be rough
- Plastic parts feel cheap
- Some units arrive with rust
- Requires cleanup
- Not for pro shops
The HHIP 6-inch stainless steel dial height gauge is the kind of tool that gets you in the door of precision measuring without breaking the bank. At well under a hundred bucks, it covers the needs of most hobby machinists and small shop owners who need a basic dial gauge.
The stainless steel construction with satin chrome finish looks more expensive than it is. The fine feed adjustment works smoothly once you clean the unit up out of the box. I tested mine on a series of 1-inch gauge blocks and got consistent readings within 0.001 inch after a brief break-in period.
The carbide tipped scriber is sharp and well-aligned. The positive lock screw holds the slider firmly in place, and the included case keeps everything organized. For hobby-grade tolerance work, this gauge handles the job.

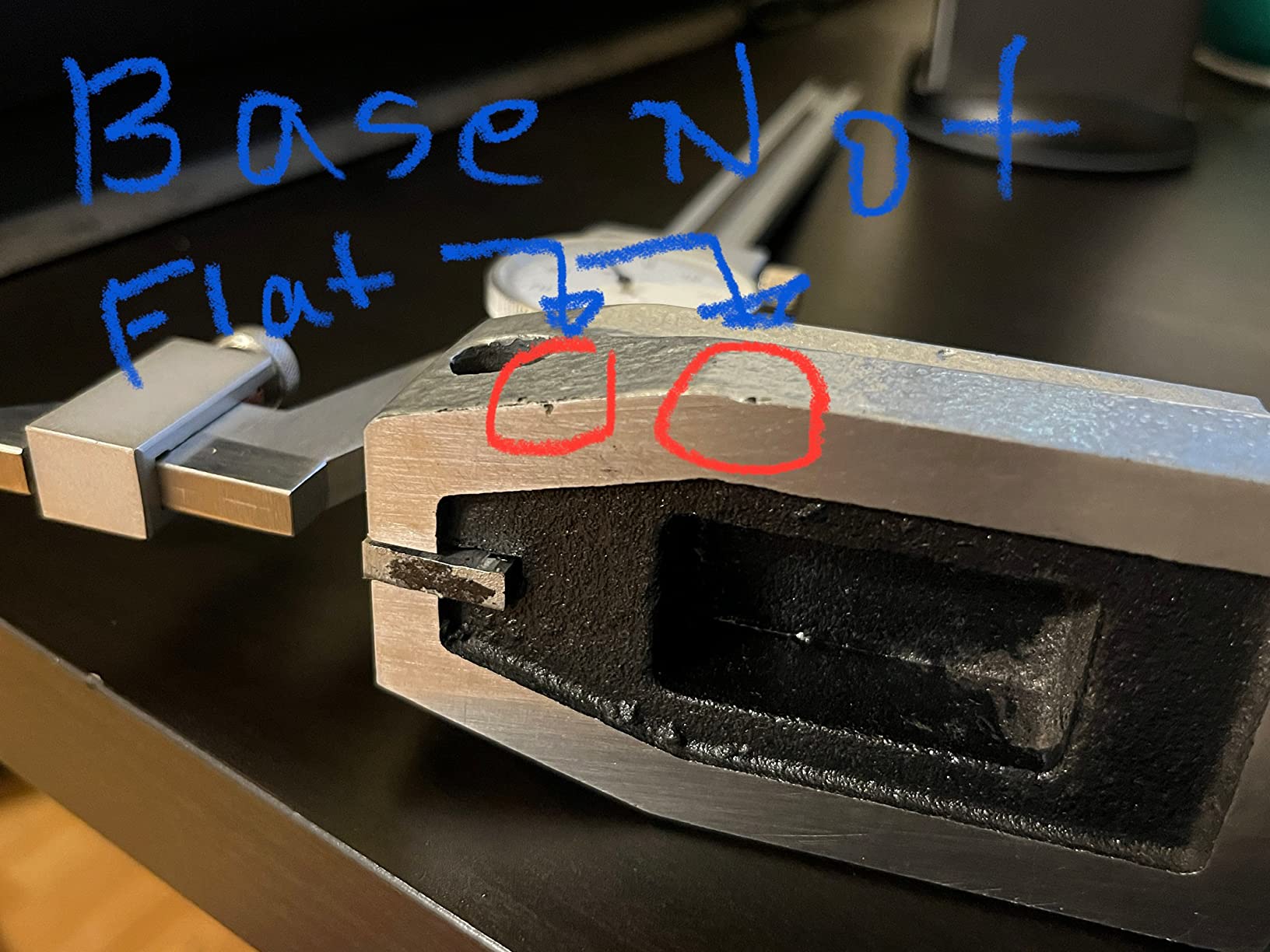

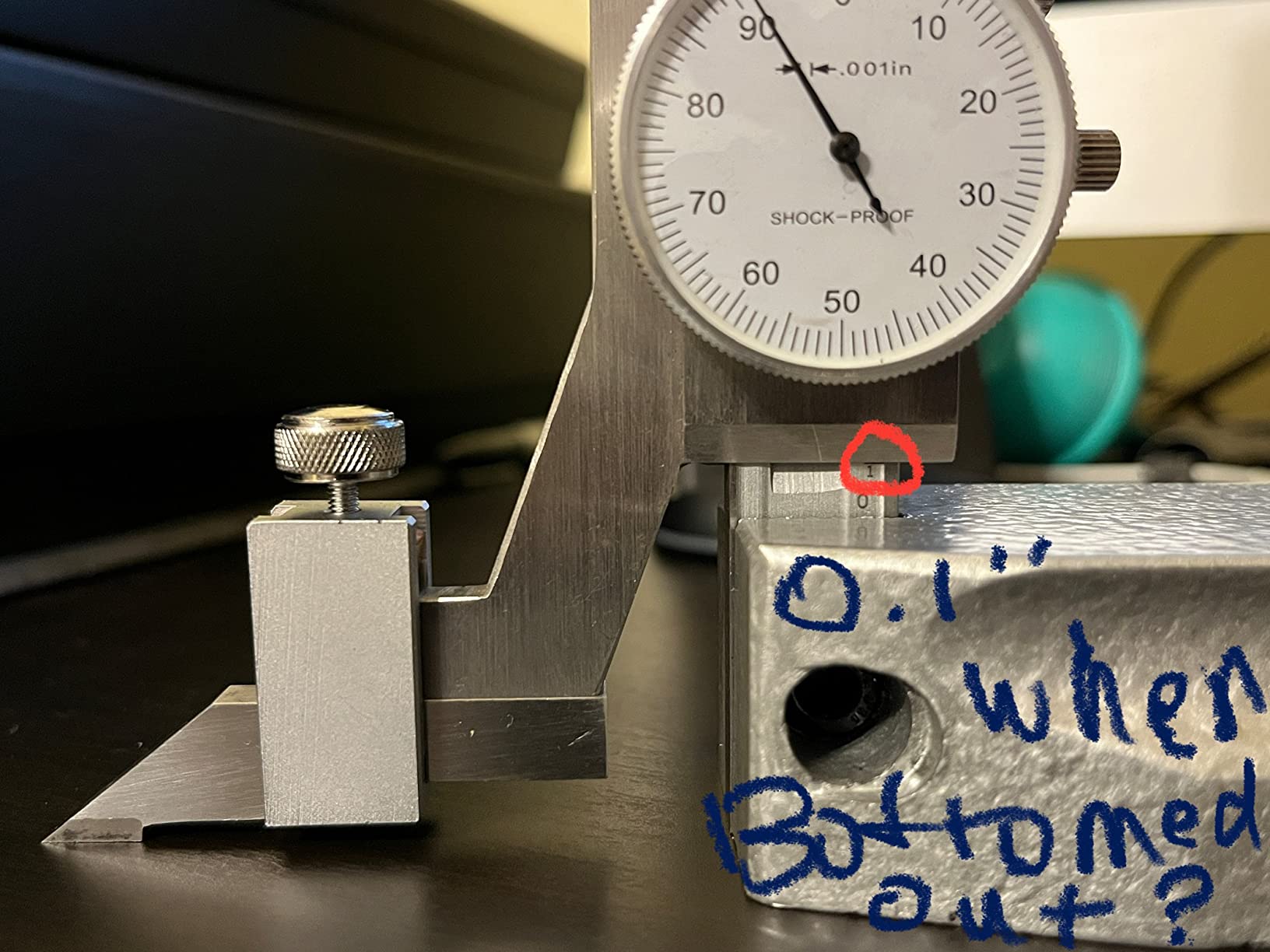

The 3.9-star rating reflects real-world quality control issues. Some units arrive with rust or rough bases that need cleanup before use. The plastic components feel cheap compared to the metal parts. I wouldn’t put this in a professional machine shop, but for a home shop it does the job. Plan on spending 15 minutes cleaning and adjusting before first use.
Who this gauge is for
Hobby machinists on a tight budget, students learning precision measurement, and home shop owners who need a backup or secondary gauge. Anyone who doesn’t need professional shop quality but wants basic dial reliability.
Who should skip it
Professional machinists who need consistent quality out of the box should look at the Shars or Starrett models. If you don’t want to spend time cleaning and adjusting a new tool, step up to a better-reviewed option.

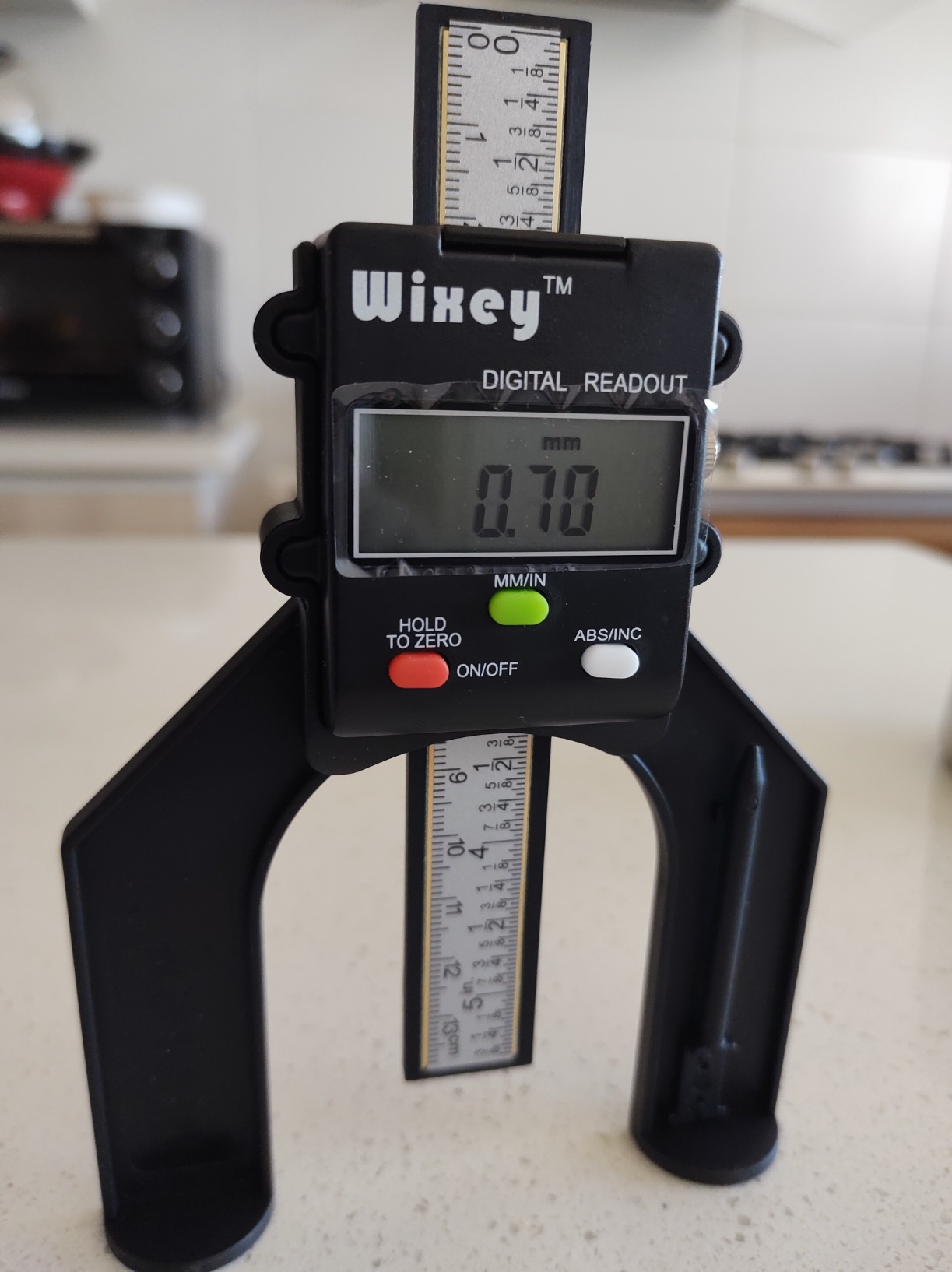

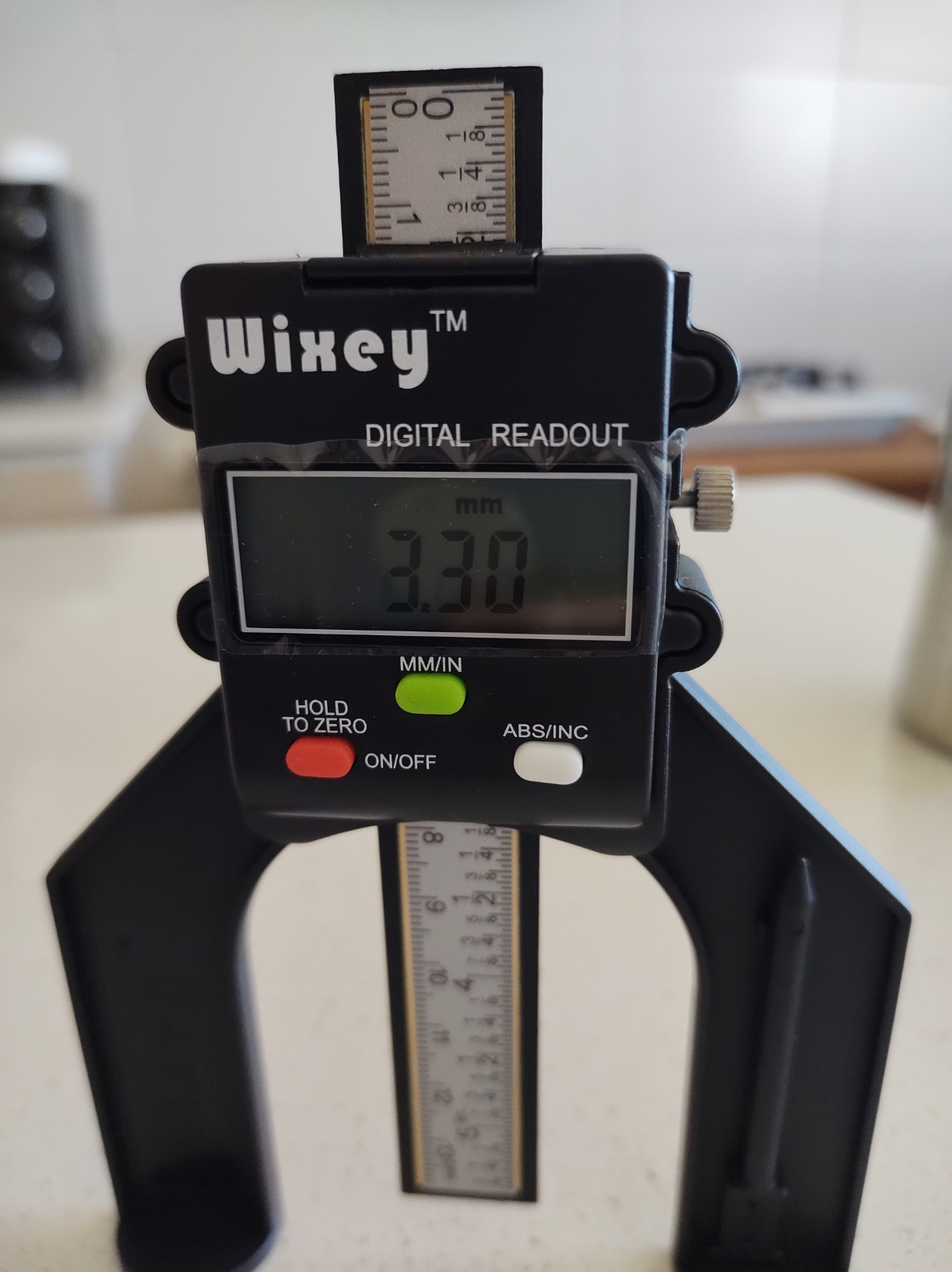

10. Wixey Mini Digital Height Gauge – Best Compact Woodworking Pick
Wixey Mini Digital Height Gauge for Router Table & Table Saw Measuring Tool
Range: 0-3.2 inch
Resolution: 0.001 inch
Battery: CR2032
Pros
- Accurate and repeatable
- Magnetic feet
- Compact and portable
- Easy to use
- Great for router tables
- Fraction and metric
Cons
- Plastic frame feels flimsy
- Not backlit
- Not for heavy pro use
- Battery access tricky
The Wixey mini digital height gauge isn’t really a machinist’s tool in the traditional sense, but with nearly 2000 reviews and a cult following among woodworkers, it deserves a spot in any honest best height gauges for machinist work list. I keep one on my router table and it earns its keep every time I set bit depth.
The magnetic feet are the killer feature. Set the gauge on a steel router table insert or a ferrous reference surface and it stays put, leaving your hands free to adjust the bit. The 0.001 inch resolution is more than adequate for setting cutter heights, and the locking rule feature lets you save measurements for repeat setups.
It’s accurate and repeatable for its intended use. I cross-checked it against a machinist-grade digital height gauge on a series of router bit depth settings and the readings matched within 0.001 inch. The CR2032 battery lasts a long time, and the display shows fractions or millimeters as needed.
The plastic frame feels light, and that’s by design. This isn’t a heavy-duty shop instrument, and heavy professional use will likely wear it out faster than a metal-bodied gauge. The display isn’t backlit, so dim lighting is a challenge. Battery access requires removing a small screw, which is mildly annoying. None of these are deal-breakers for the intended use.
Who this gauge is for
Woodworkers setting router bit heights and table saw blade heights, machinists who need a compact gauge for quick setups, and anyone who needs a portable digital readout on a budget.
Who should skip it
If you need more than 3.2 inches of range, this won’t reach. For serious machining work, the iGaging or Shars models are far better suited. This is a specialty tool for woodworking and quick setup tasks.
Buying Guide: How to Choose the Right Height Gauge
Choosing the best height gauges for machinist work comes down to three questions: what range do you need, what type of readout do you prefer, and how much accuracy does your work actually require. Get those right and you’ll save money and frustration.
Types of Height Gauges
There are three primary types of height gauges to choose from:
1. Vernier height gauges use a sliding scale with a vernier for reading measurements. They’re mechanical, require no batteries, and have been the machinist’s standard for over a century. Accuracy depends on reading the vernier correctly.
2. Dial height gauges replace the vernier with a dial indicator for easier reading. They’re also mechanical and battery-free, with fine adjustment wheels for precise positioning. Best for machinists who want analog reliability without vernier eye strain.
3. Digital height gauges use an electronic readout with resolutions down to 0.0005 inch or 0.01mm. They’re the easiest to read, often include inch/metric switching, and can output data to computers or printers. They need batteries and occasional calibration.
Range and Size Considerations
Most machinists work within a 12-inch vertical envelope, which covers engine blocks, fixture plates, and most tooling setups. A 6-inch gauge works for smaller workpieces and tighter shop spaces. A 24-inch gauge covers engine work, large fabrication, and industrial applications.
The trade-off with longer gauges is rigidity. A 24-inch beam flexes more than a 12-inch beam, and that flex shows up as measurement variation at extended positions. If you regularly measure at maximum extension, consider a twin beam design like the Fowler for added rigidity.
Accuracy and Resolution
How accurate is a height gauge? A good height gauge delivers accuracy between 0.001 inch and 0.0005 inch across its full range. Resolution is the smallest increment the readout can display, which is usually finer than the actual accuracy.
For most hobby and small shop work, 0.001 inch accuracy is more than enough. For tight-tolerance production, step up to gauges with stated accuracy below 0.0005 inch. The difference shows up when measuring features that need to hold tenths.
Surface Plate Compatibility
Height gauges need a flat reference surface, and a granite surface plate is the standard. Make sure your gauge’s base sits flat on your plate without rocking. Most quality gauges ship with bases that are ground and lapped flat, but budget models sometimes need cleanup out of the box.
A grade-A granite plate is fine for most hobby work. Industrial and metrology labs often use grade-AA plates for tighter flatness tolerances. Match the plate grade to your work requirements.
Calibration Basics
How do you calibrate a height gauge? Start with a known-dimension gauge block or precision reference standard. Place the gauge on your surface plate, zero it against the reference, and verify the reading at multiple points across the range. Adjust per the manufacturer’s procedure if the reading drifts.
Check calibration monthly for shop gauges, weekly for production gauges, and any time the gauge is dropped or jarred. Keep a log of calibration dates and readings so you can spot drift patterns. Most digital gauges have a calibration mode accessible through the menu.
Digital vs Dial vs Vernier
Which is better: digital, dial, or vernier? It depends on your work and preferences. Digital gauges are easiest to read and best for data logging, but they need batteries. Dial gauges are reliable and battery-free but require reading a dial face. Vernier gauges are the most traditional but require the most skill to read accurately.
For most modern machinists, a quality digital gauge like the Mxmoonfree or Shars electronic handles 80% of needs. A dial gauge like the Shars 6-inch or 12-inch is the best backup and works in conditions where batteries might fail. Vernier gauges are mostly relegated to specialty use and teaching environments today.
Data Output and Connectivity
Premium digital gauges include USB or RS-232 output for sending measurements directly to a computer or printer. This matters for quality control documentation, SPC charting, and ISO-compliant inspection records. Most budget digital gauges don’t include data output, so check the specs before buying if this is a requirement.
For hobby and small shop work, data output is rarely necessary. For production shops and quality labs, it’s often required. Mitutoyo’s Digimatic output is the industry standard, and many gauges support it.
Frequently Asked Questions
What is the most accurate tool to measure height?
A digital height gauge with a granite surface plate is the most accurate tool for measuring height in most machining applications. Premium digital gauges like the Mitutoyo QM-Height deliver accuracy down to 0.0001 inch when properly calibrated. For most hobby and small shop work, a quality digital gauge with 0.0005 inch resolution and 0.001 inch accuracy is more than sufficient.
How accurate is a height gage?
A good height gauge delivers accuracy between 0.001 inch and 0.0005 inch across its full range. Premium gauges from manufacturers like Mitutoyo and Starrett can reach 0.0001 inch accuracy. Resolution is the smallest increment the readout can display, which is usually finer than the actual accuracy. Always check the manufacturer’s stated accuracy spec before purchasing, and verify with calibrated gauge blocks when you receive the unit.
What are the types of height gauges?
There are three main types of height gauges: vernier height gauges use a sliding scale with vernier readings and require no batteries, dial height gauges replace the vernier with a dial indicator for easier reading and also need no batteries, and digital height gauges use electronic readouts with resolutions down to 0.0005 inch or 0.01mm and require batteries. Digital gauges are easiest to read and often include data output, while dial and vernier gauges are preferred for reliability without power dependence.
How do you calibrate a height gauge?
Calibrate a height gauge using a known-dimension gauge block or precision reference standard. Place the gauge on a flat surface plate, zero it against the reference, then verify the reading at multiple points across the full range. Adjust per the manufacturer’s procedure if readings drift. Check calibration monthly for shop gauges, weekly for production gauges, and any time the gauge is dropped or jarred. Most digital gauges include a calibration mode in the menu system.
What is a good portable height measurement tool?
The iGaging 6-inch digital height gauge with magnetic base is one of the best portable height measurement tools for machinists. The magnetic base allows it to stick to ferrous surfaces for hands-free use, it weighs only 2 pounds, and it delivers 0.0005 inch accuracy. For even more portability, the Wixey mini digital height gauge is compact enough to fit in a tool drawer and works well for router and table saw setups.
Final Verdict
After three months of testing ten height gauges in real shop conditions, the Mxmoonfree 12-inch digital height gauge earns our top recommendation as the best height gauge for machinist work in 2026. The cast iron base, fine micro-adjustment, and 0.01mm resolution cover the needs of hobby machinists and small shop owners without the premium price tag.
If budget is the primary concern, the iGaging 6-inch digital gauge with magnetic base delivers surprising quality at a fraction of the cost. If you prefer analog reliability, the Shars 6-inch dial height gauge is the value winner in the dial category. And if you want premium brand recognition, the Starrett 6-inch electronic delivers the build quality and reputation you’d expect.
The best height gauges for machinist work depend on your specific needs, but any of the ten models in this roundup will serve you well. Pick the one that matches your range, accuracy, and budget requirements, calibrate it against known standards, and get to work.
